Nissan Juke Service and Repair Manual : Special Service Tool

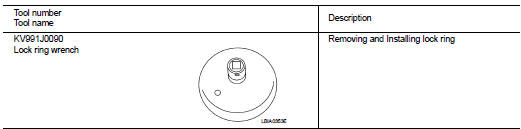

Commercial Service Tools


    General Precautions
    WARNING: When replacing fuel line parts, be sure to observe the following. • Put a ???CAUTION: FLAMMABLE??? sign in the workshop. • Be sure to work in a well ventilated area and furnish workshop ...

    Other materials:

    Structure and operation
    Transaxle : Cross-Sectional View 1. Converter housing 2. Oil pump 3. Counter drive gear 4. Control valve 5. Oil pan 6. Primary pulley 7. Steel belt 8. Secondary pulley 9. Planetary gear (auxiliary gearbox) 10. Side cover 11. Transaxle case 12. Differential case 13. Final gear ...

    Push-button ignition switch does not operate
    Description Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and check each symptom. NOTE: The engine start function, door lock function, power distribution system, and NATS-IVIS/NVIS in the Intelligent Key system are closely related to ...

    Fluid cooler system
    Exploded View 1. Bracket 2. Bracket 3. Bracket 4. CVT fluid cooler 5. Clamp 6. CVT fluid cooler hose C 7. CVT fluid cooler hose B 8. CVT fluid cooler tube assembly 9. CVT fluid cooler hose D 10. CVT fluid cooler hose A 11. Transaxle assembly A. CVT oil warmer : Vehicle front : ...
