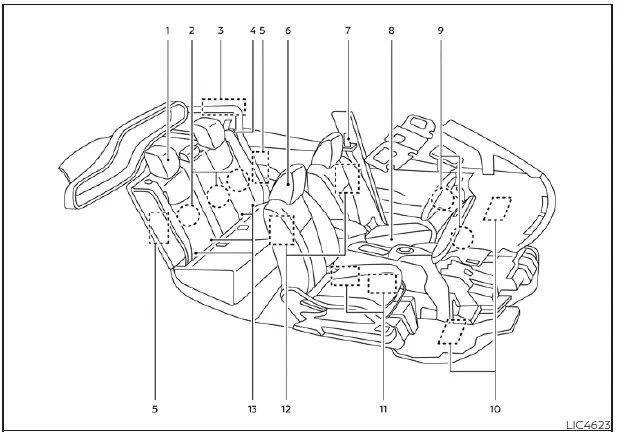

Nissan Leaf 2018-2025 (ZE1) Owner's Manual : Seats, seat belts, and the Supplemental Restraint System (SRS)
- Rear head restraints: Adjustable for optimal support and whiplash protection.
- Child restraint anchor points: Secure attachment points specifically designed for top tether straps to keep child seats stable.
- Roof-mounted curtain side-impact and rollover airbags: Designed to provide extended head protection for outboard passengers during collisions.
- Rear-outboard seat belt with pretensioner(s): Advanced restraint mechanisms that automatically tighten in the event of a significant impact.
- Rear-outboard seat-mounted side-impact supplemental airbags: Engineered for targeted torso protection for rear-seat passengers.
- Front head restraints/headrests: Ergonomically designed to reduce neck strain and enhance passenger safety.
- Front seat belt with pretensioner(s) and shoulder height adjuster: Customizable comfort paired with high-performance safety tensioning for both driver and passenger.
- Front seats: Designed for long-distance comfort, featuring durable materials and structural support.
- Supplemental front-impact airbags: Primary defense system deployed during front-end collision events.
- Driver and front passenger supplemental knee airbags: Added lower-extremity protection integrated into the Nissan Leaf dashboard architecture.
- Occupant classification sensor (weight sensor): Intelligent technology that detects passenger presence to optimize airbag deployment force.
- Front seat-mounted side-impact supplemental airbags: Supplemental protection focused on thoracic support for front-row occupants.
- LATCH (Lower Anchors and Tethers for CHildren) system: Simplified, robust hardware for installing compatible child safety seats without needing seat belts.

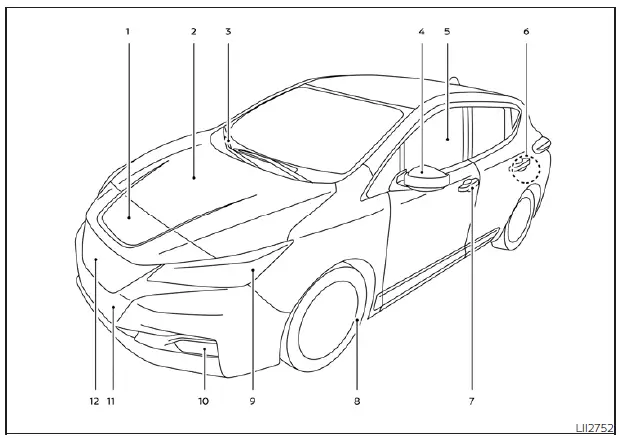

Exterior Front View
- Charge port lid/Charging lid switch: Easy-access point for your Nissan Leaf charging cables, featuring an intuitive interior release.
- Hood: Aerodynamic design providing access to essential under-hood maintenance components.
- Wiper and washer switch: Precision control for visibility; includes details on blade maintenance and windshield-washer fluid reservoir location.
- Outside mirrors: Electrically adjustable mirrors; may include integrated side-view cameras for enhanced situational awareness if equipped.
- Power windows: Convenient one-touch operation for all cabin windows.
- Child safety rear door lock: Essential security feature preventing accidental opening of rear doors from inside the vehicle.
- Doors and Security: Comprehensive access management, including NISSAN Intelligent Key system, remote door locking, and anti-theft security protocols.
- Wheels and tires: High-efficiency tires and integrated Tire Pressure Monitoring System (TPMS) to ensure safety, grip, and optimal range for your Nissan Leaf.
- Headlight and turn signal lights: Advanced illumination systems with LED Daytime Running Lights (DRL) for superior visibility and aesthetic presence.
- Fog lights: Enhanced visibility in adverse weather conditions (where equipped), with accessible bulb replacement procedures.
- License plate installation: Standardized mount for legal compliance and secure attachment.
- Front view camera: Integrated vision system for parking assistance and advanced driver-assist features.

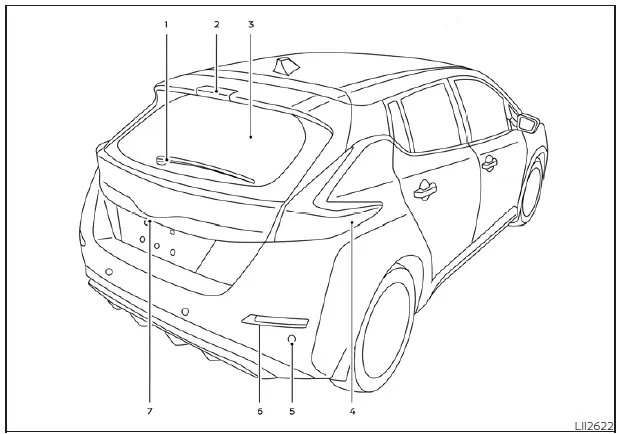

Exterior Rear View
- Rear wiper and washer switch: Ensures a clear view through the rear glass, supported by an accessible washer fluid reservoir.
- High-mounted stop light: Elevated LED lighting for improved braking awareness by following motorists.
- Rear window defroster: Quickly clears fog or ice to maintain rearward visibility.
- Rear combination lights: Distinctive tail lamp assembly with accessible bulb maintenance.
- Rear sonar sensors: Ultrasonic proximity detection to alert the driver to obstacles when reversing.
- Rear reflex reflector: Enhances vehicle visibility at night for increased safety.
- Rear hatch: Spacious access to the cargo area, integrated with a high-definition rear-view camera for confident maneuvering.
Passenger Compartment
Emergency tire puncture repair kit: Compact, convenient solution for quick fixes on the road.
Map lights: Overhead lighting console housing the Bluetooth Hands ...
