Nissan Juke Service and Repair Manual : PTC heater control unit

Reference Value

CONSULT-III DATA MONITOR REFERENCE VALUES

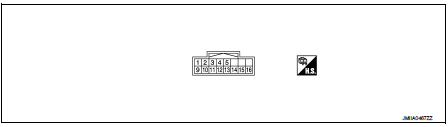

TERMINAL LAYOUT


TERMINAL LAYOUT

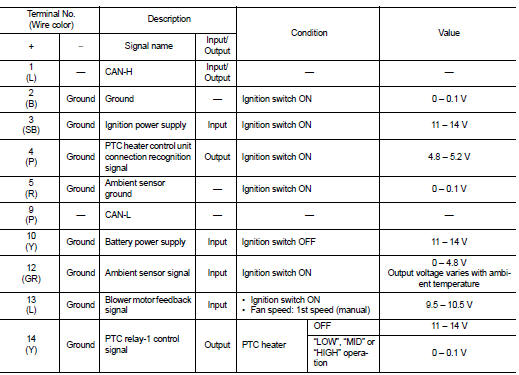

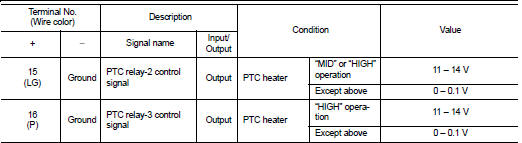

PHYSICAL VALUES


PHYSICAL VALUES

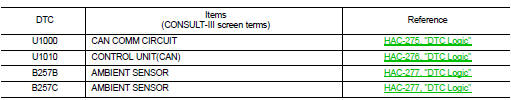

DTC Index


DTC Index

BCM, ECM, IPDM E/R


    BCM, ECM, IPDM E/R
    List of ECU Reference ...
