Nissan Juke Owners Manual : Instrument panel

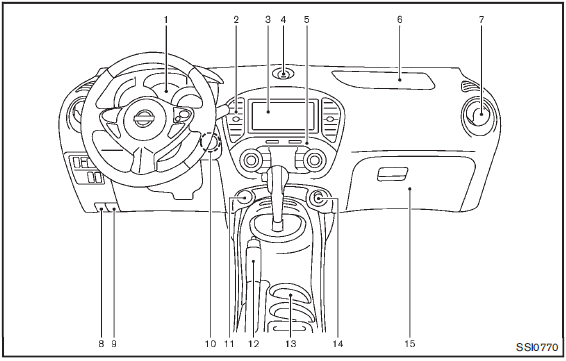

1. Meters and gauges


1. Meters and gauges
2. Center ventilator
3. Audio system or Navigation system — Clock
4. Hazard warning flasher switch 5. Integrated Control System — Drive mode
— Heater and air conditioner control — Defroster switch
5. Heater and air conditioner control (models without Integrated Control System) — Defroster switch
6. Front passenger supplemental air bag 7. Side ventilator
8. Fuel-filler door release handle 9. Hood release handle
10. Push-button ignition switch (models with Intelligent Key system) 11. AUX/USB connector
12. Parking brake
13. Cup holder
14. Power outlet
15. Glove box

: if so equipped
: Refer to the separate Navigation System Owner’s Manual.

    Cockpit
    1. Outside mirror remote control switch 2. Headlight, fog light and turn signal switch — Headlight — Turn signal light — Fog light 3. Steering wheel — Electric power steering system ...

    Meters and gauges
    1. Tachometer 2. Engine coolant temperature gauge 3. Vehicle information display — Odometer/twin trip odometer — Trip computer — Torque vectoring AWD (AWD model) — Outside air temperat ...
