Nissan Juke Owners Manual : Exterior (NISMO models)

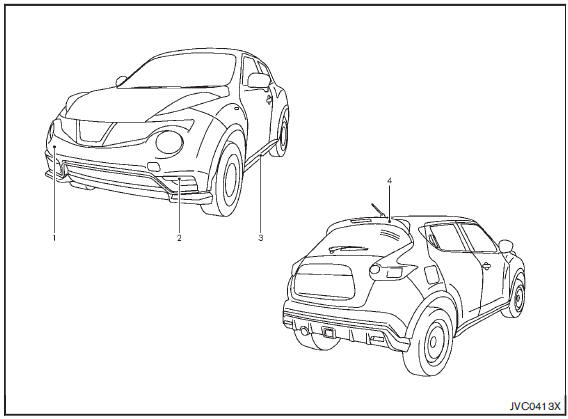

For NISMO models, the vehicle parts listed below require special care or caution for cleaning. Refer to the additional information in each section.
1. Front bumper (, )
2. Daytime running light (, , , )
3. Side sill extensions
4. Rear spoiler (, )
