Nissan Leaf 2018-2025 (ZE1) Owner's Manual : EVSE (Electric Vehicle Supply Equipment) control box indicator light

Nissan Leaf 2018-2025 (ZE1) Owner's Manual / Charging / Charging related indicator lights / EVSE (Electric Vehicle Supply Equipment) control box indicator light

Charging status display on the EVSE control box for the Nissan Leaf

During the charging process, the EVSE control box provides dedicated status updates through its own indicator lights. These lights serve as your primary diagnostic tool to verify proper operation and are designed to alert you immediately if a malfunction is detected in the EVSE hardware.

EVSE indicator lights showing active charging status

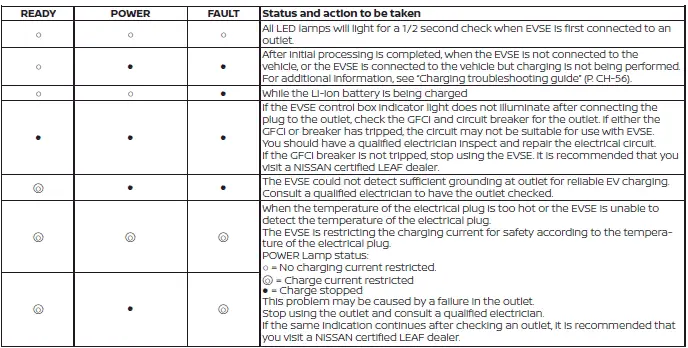

Secondary EVSE indicator light display for the Nissan Leaf

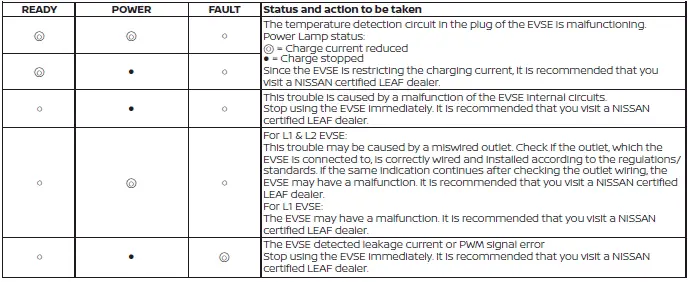

Tertiary EVSE indicator light display for the Nissan Leaf

Charging troubleshooting guide

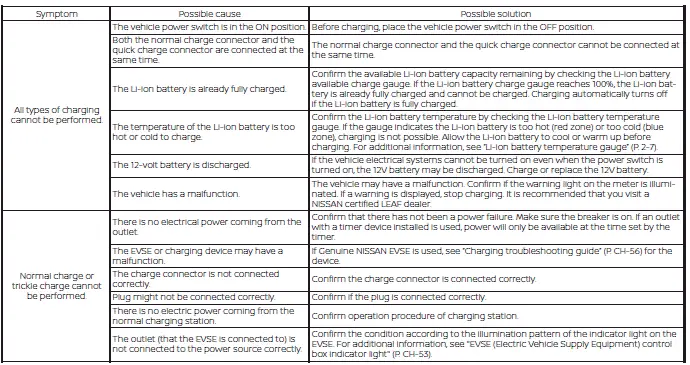

Troubleshooting chart for Nissan Leaf charging system issues

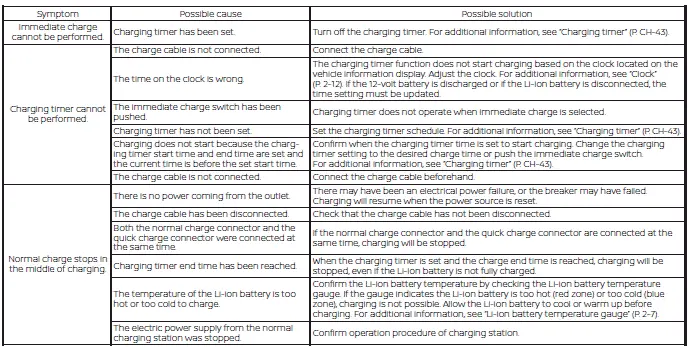

Diagnostic steps for EVSE control box error lights

Reference guide for Nissan Leaf charging hardware status lights

    Charging status indicator lights
    The Nissan Leaf features a intuitive trio of charging status indicator lights—labeled (1) through (3)—designed to provide you with immediate visual feedback. These lights are ...
