Common item

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

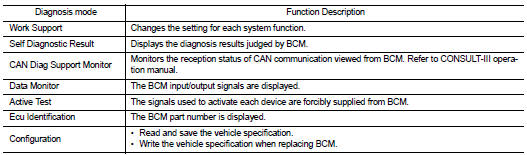

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

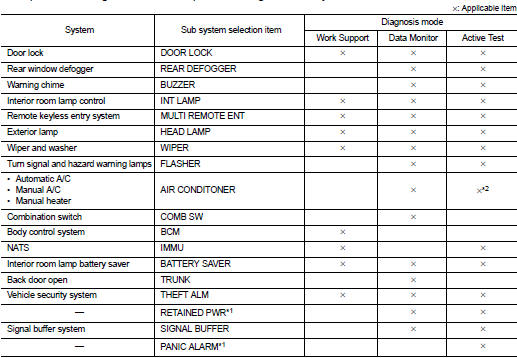

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

• *1: This item is displayed, but is not used.


• *1: This item is displayed, but is not used.

• *2: For models with automatic A/C, this mode is not used.

Wiper

WIPER : CONSULT-III Function (BCM - WIPER)

WORK SUPPORT

*1: The item is indicated, but not operated on model with rain sensor

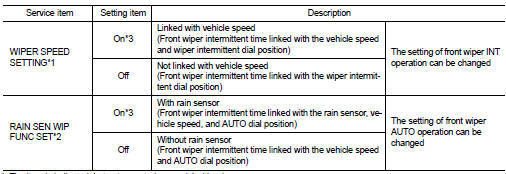

*1: The item is indicated, but not operated on model with rain sensor *2: The item is indicated, but not operated on model without rain sensor *3: Factory setting

DATA MONITOR

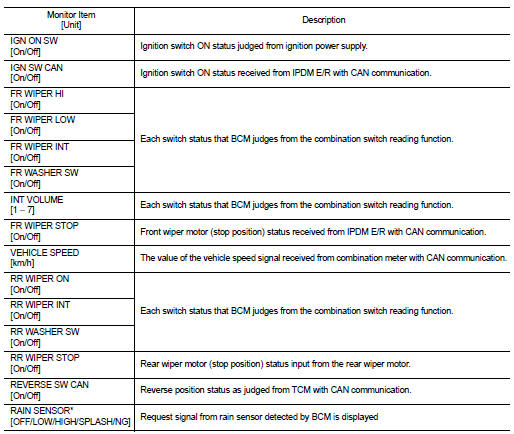

*: The item is displayed but is not monitored on model without rain sensor

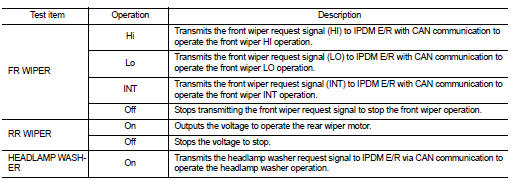

*: The item is displayed but is not monitored on model without rain sensor ACTIVE TEST
