Nissan Juke Owners Manual : Capacities and recommended fuel/lubricants

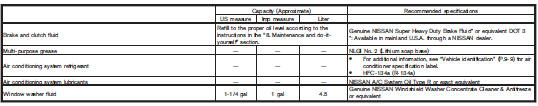

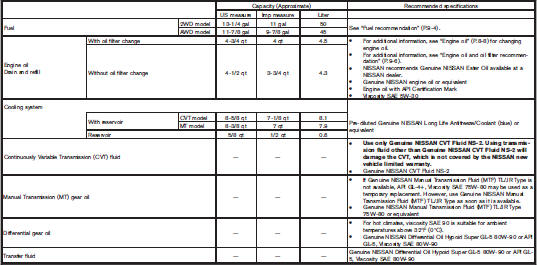

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacit
- Fuel recommendation
- Engine oil and oil filter recommendation
- Air conditioning system refrigerant and lubricant recommendations
Fuel recommendation
NISSAN recommends the use of unleaded premium gasoline with an octane rating of at least 91 AKI (Anti-Knock Index) number (Research octane number 96). If unleaded premium gasoline is not available, ...Other materials:
