Nissan Juke Service and Repair Manual : P0963 pressure control solenoid A

DTC Logic

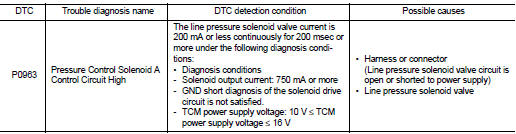

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE


DTC CONFIRMATION PROCEDURE

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.CHECK DTC DETECTION

1. Start the engine and wait for 5 seconds or more.

2. Check the first trip DTC.

Is P0963 detected? YES >> Go to TM-433, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Proc

1.CHECK CIRCUIT BETWEEN TCM AND THE CVT UNIT

1. Turn the ignition switch OFF.

2. Disconnect the TCM connector and the CVT unit connector.

3. Check the continuity between the TCM harness connector terminal and the CVT unit harness connector terminal.

Is the inspection result normal?


Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace the malfunctioning parts.

2.CHECK LINE PRESSURE SOLENOID VALVE

Check the line pressure solenoid valve. Refer to TM-434, "Component Inspection (Line Pressure Solenoid Valve)".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-42, "Intermittent Incident".

NO >> Repair or replace the malfunctioning parts.

Component Inspection (Line Pressure Solenoid Valve)

1.CHECK LINE PRESSURE SOLENOID VALVE

Check the resistance between the CVT unit connector terminal and ground.

Is the inspection result normal?


Is the inspection result normal? YES >> INSPECTION END

NO >> There is a malfunction of the line pressure solenoid valve. Replace the transaxle assembly. Refer to TM-508, "Removal and Installation".
