Nissan Juke Service and Repair Manual : Evap canister

Hydraulic Layout

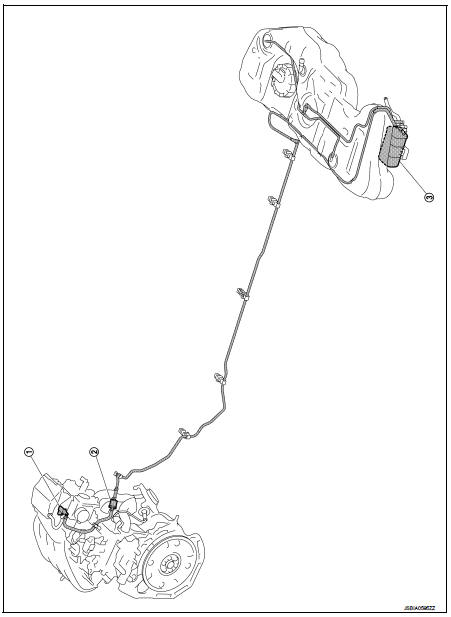

EVAPORATIVE EMISSION LINE DRAWING

1. EVAP canister purge volume control


1. EVAP canister purge volume control solenoid valve
2. Resonator
3. EVAP canister

NOTE

:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
