Nissan Juke Service and Repair Manual : Brake master cyl

Exploded View

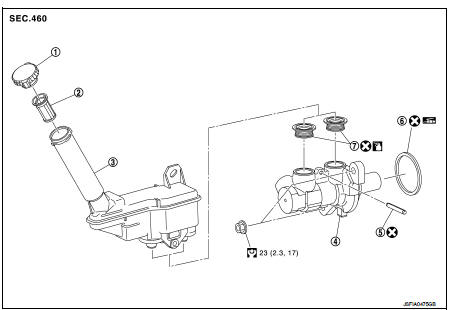

2WD

1. Reservoir cap


1. Reservoir cap
2. Oil strainer
3. Reservoir tank
4. Cylinder body
5. Pin
6. O-ring
7. Grommet

lubricant.: Apply polyglycol ether based
lubricant.

: Nm (kg-m, ft-lb): Apply brake fluid.


: Always replace after every: Nm (kg-m, ft-lb)
disassembly.: Always replace after every
disassembly.

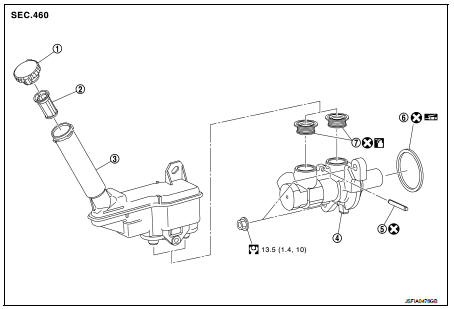

4WD

1. Reservoir cap


1. Reservoir cap
2. Oil strainer
3. Reservoir tank
4. Cylinder body
5. Pin
6. O-ring
7. Grommet

lubricant.: Apply polyglycol ether based
lubricant.

: Nm (kg-m, ft-lb): Apply brake fluid.


: Always replace after every: Nm (kg-m, ft-lb)
disassembly.: Always replace after every
disassembly.

Removal and Installation

REMOVAL

CAUTION:
Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off immediately and wash with water if it gets on a painted surface. For brake component parts, never wash them with water.

Never depress the brake pedal while removing the brake tube. If this is not complied with, brake fluid may splash.

1. Perform inspection before removal. Refer to BR-45, "Inspection".

2. Depress the brake pedal several times to release the vacuum pressure from the brake booster.

3. Drain brake fluid. Refer to BR-12, "Draining".

4. Disconnect the brake fluid level switch harness connector.

5. Remove air duct and air cleaner case.

MR16DDT: Refer to EM-26, "Removal and Installation".

HR16DE: Refer to EM-161, "Removal and Installation".

K9K: Refer to EM-280, "Removal and Installation".

6. Separate the brake tube from master cylinder assembly with a flare nut wrench (A).

CAUTION:
Never scratch the flare nut and the brake tube.

7. Remove the master cylinder assembly.

CAUTION:
Never deform or bend the brake tubes.

Never depress the brake pedal after the master cylinder assembly is removed.

 The piston (A) of the master cylinder assembly is


The piston (A) of the master cylinder assembly is exposed. Never damage it when removing the master cylinder.

The piston may drop off when pulled out strongly. Never hold the piston. Hold the cylinder body when handling the master cylinder assembly.

8. Remove the O-ring.

INSTALLATION


INSTALLATION

Note the following, and install in the reverse order of removal.

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it off immediately and wash with water if it gets on a painted surface. For brake component parts, never wash them with water.

Never depress the brake pedal while removing the brake tube. If this is not complied with, brake fluid may splash.

Never depress the brake pedal after the master cylinder assembly is removed.

Apply polyglycol ether based lubricant to the brake booster [see (A) in the figure] when installing the master cylinder assembly to the brake booster.

 The piston (A) of the master cylinder assembly is exposed. Never


The piston (A) of the master cylinder assembly is exposed. Never damage it when handling the master cylinder.

Check that no dirt and dust are present on the piston before installation.

Clean it with new brake fluid if necessary.

The piston may drop off when pulled strongly. Never hold the piston.

Hold the cylinder body when handling the master cylinder assembly.

Never reuse the O-ring.

Never deform or bend the brake tubes.

 Temporarily tighten the brake tube flare nut to the master cylinder


Temporarily tighten the brake tube flare nut to the master cylinder assembly by hand. Then tighten it to the specified torque with a flare nut torque wrench (A). Refer to BR-24, "FRONT : Exploded View".

Perform the air bleeding. Refer to BR-13, "Bleeding Brake System" Perform inspection after installation. Refer to BR-45, "Inspection".

Disassembly and Assembly


Disassembly and Assembly

DISASSEMBLY

CAUTION:
Never disassemble the cylinder body.

Remove the reservoir tank only when necessary.

1. Fix the master cylinder assembly to a vise.

CAUTION:
Always set copper plates or cloth between vise grips when fixing the cylinder body to a vise.

Never overtighten the vise.

2. Remove the reservoir tank mounting pin with a pin punch (A) [4 mm (0.157 in)].

3. Remove the reservoir tank and grommet from the cylinder body.

ASSEMBLY


ASSEMBLY

CAUTION:
Never use mineral oils such as kerosene or gasoline and rubber grease during the cleaning and assembly process.

Never allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.

Never drop the when installing. The parts must not be reused if they are dropped.

1. Apply new brake fluid to the grommet and install it to the cylinder body.

CAUTION:
Never reuse the grommets.

2. Install the reservoir tank to the cylinder body.

3. Fix the cylinder body to a vise.

CAUTION:
Place the reservoir tank with the chamfered pin hole ()
) facing up.

Always set copper plates or cloth between vise grips when fixing the cylinder body to a vise.

Never overtighten the vise.

4. Tilt the reservoir tank so that a mounting pin can be inserted. Insert a


4. Tilt the reservoir tank so that a mounting pin can be inserted. Insert a mounting pin. Return the reservoir tank to the horizontal position. Insert another mounting pin into the pin hole on the opposite side in the same manner after the mounting pin passes through the cylinder body pin hole.

CAUTION:
Never reuse the mounting pin.

Inspection

INSPECTION BEFORE REMOVAL

Check the brake fluid level switch.

Without ESP: Refer to BRC-73, "Component Inspection".

With ESP: Refer to BRC-194, "Component Inspection".

INSPECTION AFTER INSTALLATION

Check the following items and replace if necessary.

Check the master cylinder for deformation, twist, contact with other parts or looseness of connection.

Check for fluid leakage from connection. Refer to BR-30, "FRONT : Inspection".

CAUTION:
If the fluid leakage is present, retighten to the specified torque. Replace if necessary.
