Nissan Juke Owners Manual : Engine
This spark ignition system complies with the Canadian standard ICES-002.

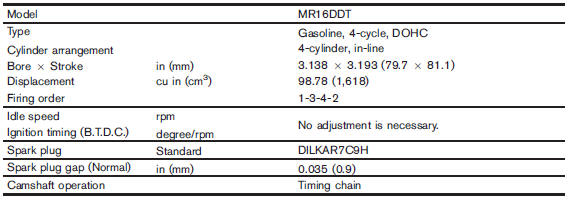

Specifications
...
Wheels and tires
Road wheel
1: 2WD MT model
2: 2WD CVT model
3: AWD model ...
Other materials:
B1131 side air bag module RH
DTC Logic
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAG RESULT
With CONSULT-III
1. Turn ignition switch ON.
2. Perform “Self Diagnostic Result” mode of “AIR BAG” using CONSULT-III.
Without CONSULT-III
1. Turn ignition switch ON.
2. Check the air bag warning lamp statu ...
Diagnosis and repair workflow
Work Flow
OVERALL SEQUENCE
• Malfunctions are declared as either present or stored (depending on whether
they appeared in a certain context
and have disappeared since, or whether they remain present but have not been
diagnosed within the
current context).
• The present or stored status of ...
Fuel injector and fuel tube
Exploded View
1. Holder
2. Seal ring (white)
3. Backup ring
4. O-ring (blue)
5. Fuel injector
6. Stud bolt
7. Fuel tube assembly
8. Fuel tube insulator
9. Fuel tube protector
10. Fuel pressure sensor
11. O-ring
12. Fuel tube adaptor
13. Backup ring (white)
14. Backup ring ( ...
