Nissan Juke Service and Repair Manual : Component parts

Component Parts Location

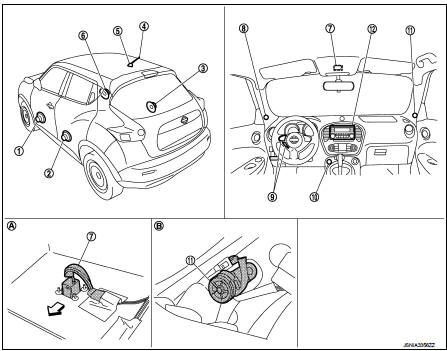

MODELS WITH USB CONNECTION FUNCTION

1. Front door speaker LH


1. Front door speaker LH 2. Rear door speaker LH 3. Rear door speaker RH
4. Antenna rod
5. Antenna base (antenna amp.) 6. Front door speaker RH 7. Microphone
8. Tweeter LH
9. Steering switch
10. USB connector and AUX jack 11. Tweeter RH
12. Audio unit

A. Back of headlining B.Front pillar finisher removed condition

MODELS WITHOUT USB CONNECTION FUNCTION: Vehicle front

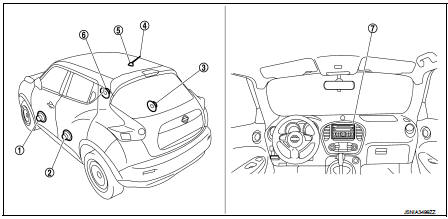

MODELS WITHOUT USB CONNECTION FUNCTION

1. Front door speaker LH


1. Front door speaker LH 2. Rear door speaker LH 3. Rear door speaker RH
4. Antenna rod
5. Antenna base (antenna amp.) 6. Front door speaker RH 7. Audio unit

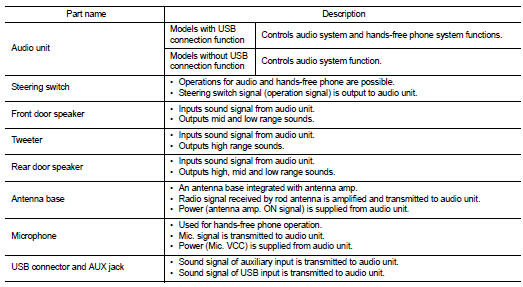

Component Description

System


    System
    System Diagram MODELS WITH USB CONNECTION FUNCTION NOTE: An antenna base integrated with radio antenna amp. is adopted. MODELS WITHOUT USB CONNECTION FUNCTION NOTE: An antenna base integra ...
