Nissan Juke Service and Repair Manual : Body component parts

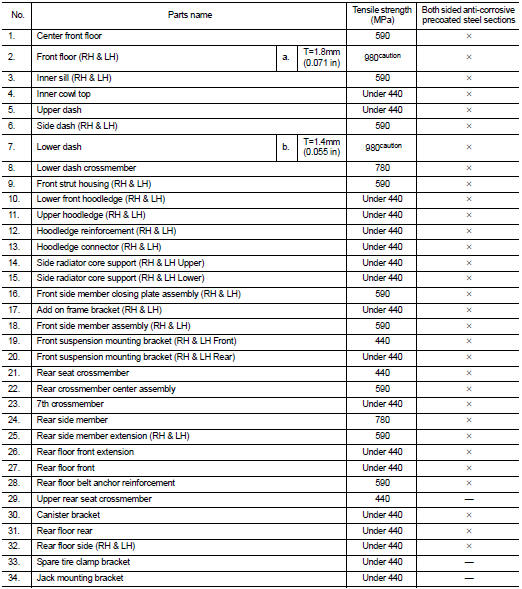

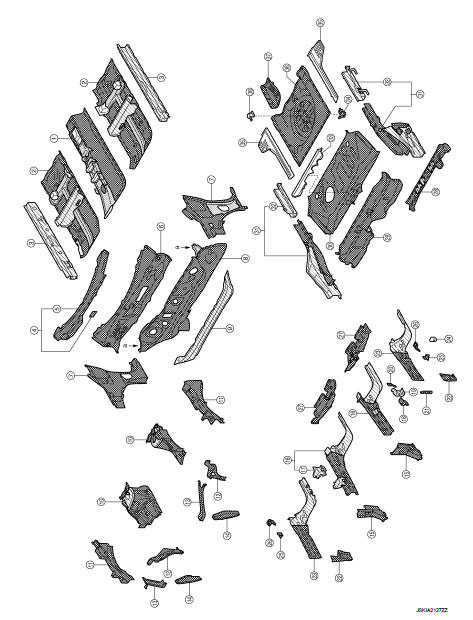

Underbody Component Parts (2WD Models)

: Both sided anti-corrosive


precoated steel sections: Both sided anti-corrosive
precoated steel sections sections: High strength steel (HSS)
sections
and HSS sections: Both sided anti-corrosive steel
and HSS sections

NOTE:


NOTE

:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

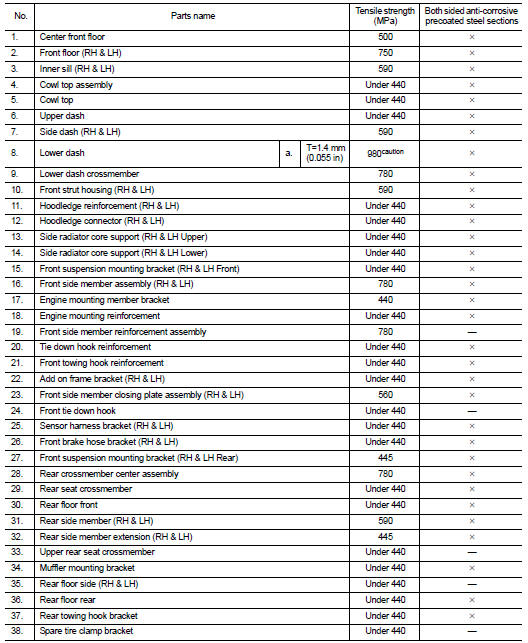

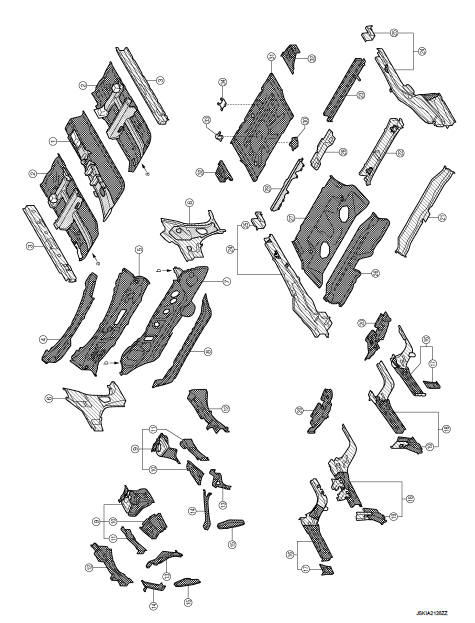

Underbody Component Parts (4WD Models)

: Both sided anti-corrosive


precoated steel sections: Both sided anti-corrosive
precoated steel sections sections: High strength steel (HSS)
sections
and HSS sections: Both sided anti-corrosive steel
and HSS sections

NOTE:


NOTE

:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

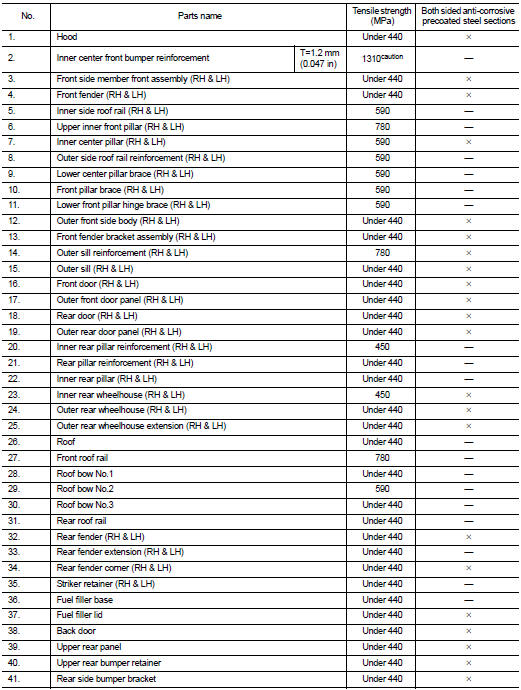

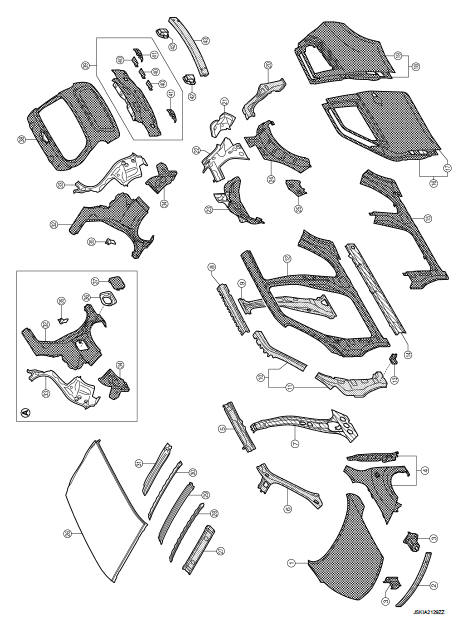

Body Component Parts (2WD Models)

A. Right side


A. Right side

precoated steel sections: Both sided anti-corrosive
precoated steel sections sections: High strength steel (HSS)
sections
and HSS sections: Both sided anti-corrosive steel
and HSS sections


NOTE:


NOTE

:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

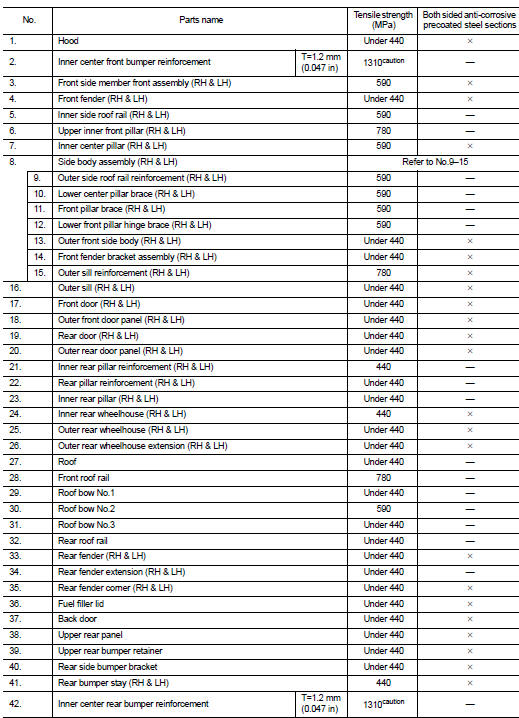

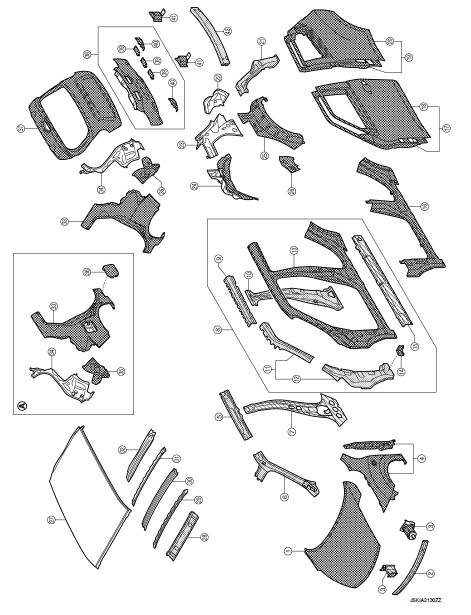

Body Component Parts (4WD Models)

A. Right side


A. Right side

precoated steel sections: Both sided anti-corrosive
precoated steel sections sections: High strength steel (HSS)
sections
and HSS sections: Both sided anti-corrosive steel
and HSS sections

NOTE:


NOTE

:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part
