Nissan Juke Service and Repair Manual : Idle air volume learning

Description

Idle Air Volume Learning is a function of ECM to learn the idle air volume that keeps each engine idle speed within the specific range. It must be performed under any of the following conditions:
Each time electric throttle control actuator or ECM is replaced.

Idle speed or ignition timing is out of specification.

Work Procedure

1.PRECONDITIONING

Make sure that all of the following conditions are satisfied.

Learning will be cancelled if any of the following conditions are missed for even a moment.

Battery voltage: More than 12.9 V (At idle) Engine coolant temperature: 70 - 100C (158 - 212F) Selector lever: P or N (CVT), Neutral (M/T) Electric load switch: OFF (Air conditioner, headlamp, rear window defogger) - For vehicles equipped with daytime light systems, perform one of the following procedures before starting engine not to illuminate headlamps.

Apply parking brake
Set lighting switch to the 1st position Steering wheel: Neutral (Straight-ahead position) position Vehicle speed: Stopped Transmission: Warmed-up - CVT models

With CONSULT-III: Drive vehicle until FLUID TEMP SE in DATA MONITOR mode of TRANSMISSION system indicates less than 0.9 V.

Without CONSULT-III: Drive vehicle for 10 minutes.

- M/T models

Drive vehicle for 10 minutes.

Do you have CONSULT-III? YES >> GO TO 2.

NO >> GO TO 3.

2.IDLE AIR VOLUME LEARNING

1. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING. Refer to EC-542,With CONSULT-III


1. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING. Refer to EC-542, "Work Procedure".

2. Perform THROTTLE VALVE CLOSED POSITION LEARNING. Refer to EC-543, "Work Procedure".

3. Start engine and warm it up to normal operating temperature.

4. Select IDLE AIR VOL LEARN in WORK SUPPORT mode with CONSULT-III.

5. Touch START and wait 20 seconds.

Is CMPLT displayed on CONSULT-III screen? YES >> GO TO 4.

NO >> GO TO 5.

3.IDLE AIR VOLUME LEARNING

NOTE:Without CONSULT-III


NOTE

:
It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a malfunction.

1. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING. Refer to EC-542, "Work Procedure".

2. Perform THROTTLE VALVE CLOSED POSITION LEARNING. Refer to EC-543, "Work Procedure".

3. Start engine and warm it up to normal operating temperature.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.

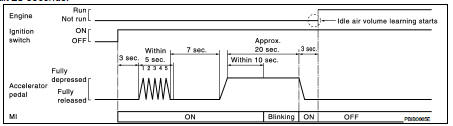

6. Repeat the following procedure quickly five times within 5 seconds.

- Fully depress the accelerator pedal.

- Fully release the accelerator pedal.

7. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MI stops blinking and turned ON.

8. Fully release the accelerator pedal within 3 seconds after the MI turned ON.

9. Start engine and let it idle.

10. Wait 20 seconds.

>> GO TO 4.

4.CHECK IDLE SPEED AND IGNITION TIMING

Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.

For specification, refer to EC-807, "Idle Speed" and EC-807, "Ignition Timing".

Is the inspection result normal? YES >> INSPECTION END

NO >> GO TO 5.

5.DETECT MALFUNCTIONING PART

Check the following
Check that throttle valve is fully closed.

Check PCV valve operation.

Check that downstream of throttle valve is free from air leakage.

Is the inspection result normal? YES >> GO TO 6.

NO >> Repair or replace malfunctioning part.

6.DETECT MALFUNCTIONING PART

Engine component parts and their installation condition are questionable. Check and eliminate the cause of the incident.

It is useful to perform TROUBLE DIAGNOSIS - SPECIFICATION VALUE. Refer to EC-558, "Description".

If any of the following conditions occur after the engine has started, eliminate the cause of the incident and perform Idle Air Volume Learning all over again: Engine stalls.

Erroneous idle.

>> INSPECTION END

Mixture ratio self-learning value clear


    Throttle valve closed position learning
    Description Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle valve by monitoring the throttle position sensor output signal. It must ...

    Mixture ratio self-learning value clear
    Description This describes how to erase the mixture ratio self-learning value. For the actual procedure, follow the instructions in Diagnosis Procedure. Work Procedure 1.START With CONSULT-II ...
