Nissan Juke Service and Repair Manual : Exploded View

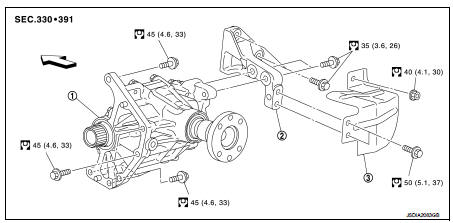

1. Transfer gusset


1. Transfer gusset
2. Transfer assembly
3. Heat insulator

: N·m (kg-m, ft-lb): Vehicle front
Removal and Installation: N·m (kg-m, ft-lb)


    Unit removal and installation
    TRANSFER ASSEMBLY ...

    Removal and Installation
    REMOVAL 1. Separate the rear propeller shaft. Refer to DLN-121, "Removal and Installation". 2. Remove right side drive shaft. Refer to FAX-24, "RIGHT SIDE : Removal and Installati ...
