Nissan Juke Service and Repair Manual : Wheel Alignment

2WD

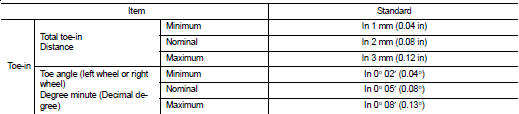

Measure value under unladen*2 conditions.

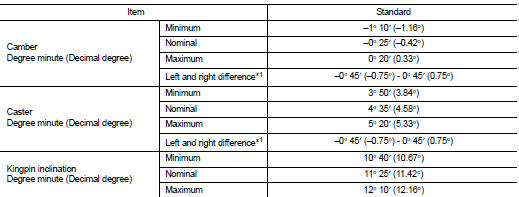

Measure value under unladen*2 conditions.

*1: A difference when assuming the left side a standard.

*2: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

4WD

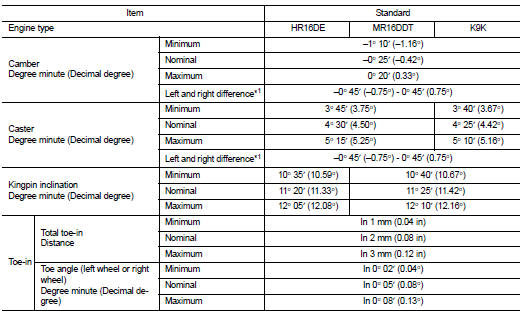

Measure value under unladen*2 conditions.


Measure value under unladen*2 conditions.

*1: A difference when assuming the left side a standard.

*2: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
