Nissan Juke Service and Repair Manual : Water outlet

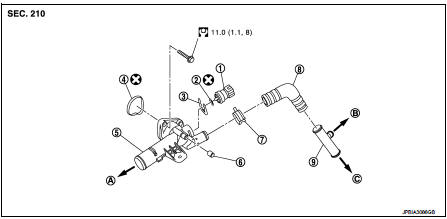

Exploded View

1. Engine coolant temperature sensor


1. Engine coolant temperature sensor 2. O-ring
3. Lock plate
4. Gasket
5. Water outlet and thermostat assembly 6. Air relief plug
7. Clamp
8. Water hose
9. Water pipe

A. To radiator hose upper B. To EGR cooler hose
C. To heater hose

: Always replace after every: N·m (kg-m, ft-lb)
disassembly.: Always replace after every
disassembly.

Removal and Installation

REMOVAL

1. Remove air cleaner case. Refer to EM-280, "Exploded View".

2. Remove vacuum hose.

3. Remove vacuum pump. Refer to EM-293, "Exploded View".

4. Drain engine coolant. Refer to CO-62, "Draining".

CAUTION:
Perform when engine is cold.

5. Remove radiator upper hose. Refer to CO-66, "Exploded View".

6. Remove water hose.

7. Remove water outlet.

INSTALLATION

Install in the reverse order of removal.
