Nissan Juke Service and Repair Manual : System description

VENTILATION SYSTEM

System Description

OUTLINE

Ventilation system is controlled by A/C auto amp. (AUTOMATIC AIR CONDITIONING) or A/C control (MANUAL AIR CONDITIONING and MANUAL HEATER). For details of air conditioner system, refer to HAC-17, "System Description" (AUTOMATIC AIR CONDITIONING), HAC-203, "System Description" (MANUAL AIR CONDITIONING) or HAC-315, "System Description" (MANUAL HEATER).

AIR FLOW

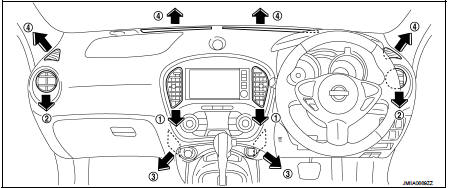

Front

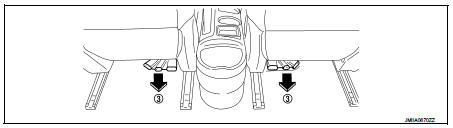

Rear


Rear

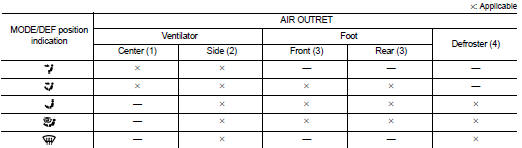

With rear heater duct


With rear heater duct

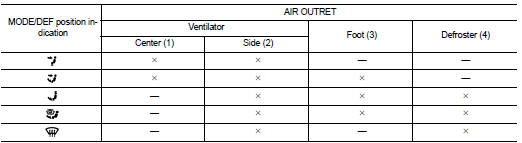

Without rear heater duct


Without rear heater duct
