Nissan Juke Service and Repair Manual : Symptom diagnosis

Noise, vibration and harshnesS (NVH) Troubleshooting

NVH Troubleshooting - Engine Noise

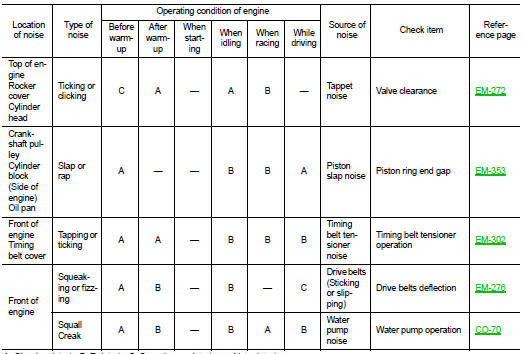

Use the Chart Below to Help You Find the Cause


Use the Chart Below to Help You Find the Cause of the Symptom

1. Locate the area where noise occurs.

2. Confirm the type of noise.

3. Specify the operating condition of engine.

4. Check specified noise source.

If necessary, repair or replace these parts.

A: Closely related B: Related C: Sometimes related : Not related


A: Closely related B: Related C: Sometimes related : Not related

    Camshaft valve clearance
    Valve Clearance CHECKING AND ADJUSTING THE VALVE CLEARANCE 1. Install the tappet. 2. Install the camshaft. 3. Install the camshaft brackets. : 11 Nm (1.1 kg-m, 8 ft-lb) 4. Place the valves of t ...
