Nissan Juke Service and Repair Manual : Symptom diagnosis

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

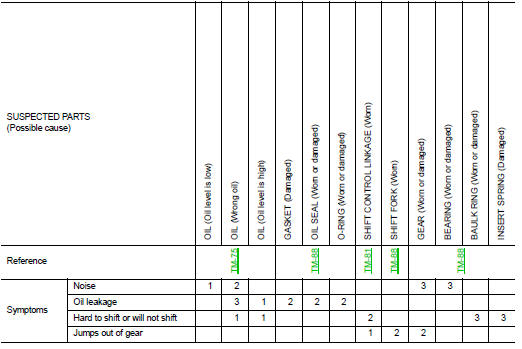

NVH Troubleshooting Chart

Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If necessary, repair or replace these parts.

Periodic maintenance


    Park/neutral position (PNP) switch : Component Inspection
    1.CHECK PARK/NEUTRAL POSITION (PNP) SWITCH 1. Disconnect position switch connector. Refer to TM-77, "Removal and Installation". 2. Check continuity between position switch terminals. ...

    Periodic maintenance
    GEAR OIL Inspection OIL LEAKAGE Make sure that gear oil is not leaking from transaxle or around it. OIL LEVEL 1. Remove filler plug (1) and gasket from transaxle case. 2. Check the oil level f ...
