Nissan Juke Service and Repair Manual : Service data and specifications (SDS)

Nissan Juke Service and Repair Manual / Starting system / Service data and specifications (SDS)

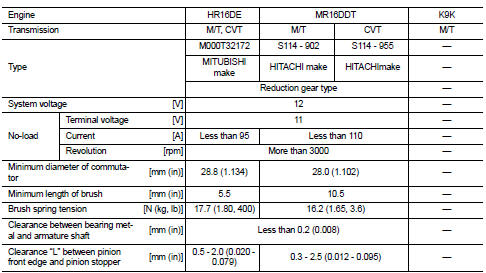

Starter Motor

Accelerator control system


    MR16DDT : Inspection and Adjustment
    INSPECTION Magnetic Switch Check • Before starting to check, disconnect the battery cable from the negative terminal. • Disconnect “M” terminal of starter motor. 1. Continuity test [between “S ...
