Nissan Juke Owners Manual : Seats, seat belts and Supplemental Restraint System (SRS)

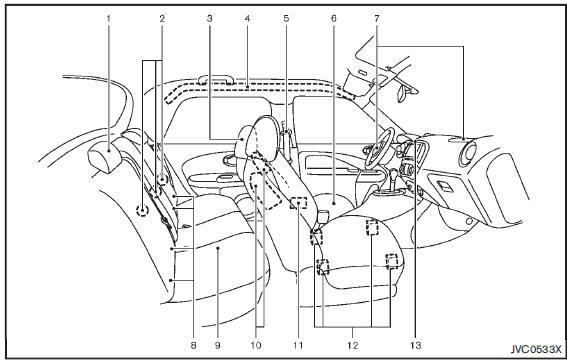

1. Rear head restraints
2. Child restraint anchor points (for top tether strap child restraint)
3. Front head restraints
— Front-seat Active Head Restraints
4. Roof-mounted curtain side-impact supplemental air bags
5. Seat belts
6. Front seats
7. Supplemental front-impact air bags
8. LATCH (Lower Anchors and Tethers for CHildren) system
9. Rear seats
— Child restraints
10. Front seat-mounted side-impact supplemental air bags 11. Seat belt with
pretensioners
12. Occupant classification sensors (weight sensors)
— Advanced Air Bag System
13. Front passenger air bag status light
Exterior front
1. Hood
2. Windshield wiper and washer
— Switch operation
— Blade replacement
— Window washer fluid
3. Parking lights, turn signal lights and front side marker lights
— Switch operation
...
