Nissan Juke Service and Repair Manual : Relation between Illustrations and Descriptions

Nissan Juke Service and Repair Manual / General information / How to use this manual / Relation between Illustrations and Descriptions

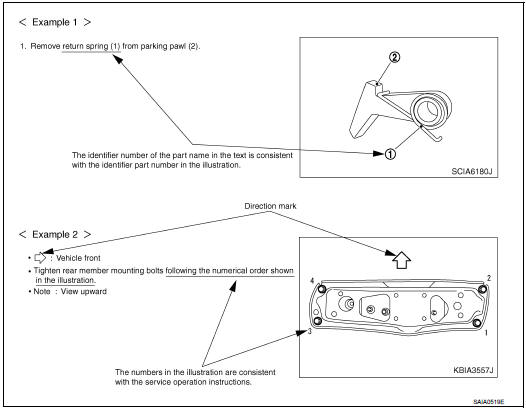

The following sample explains the relationship between the part description in an illustration, the part name in the text and the service procedures.
