REPAIRING HIGH STRENGTH STEEL

High Strength Steel (HSS)

High strength steel is used for body panels in order to reduce vehicle weight.

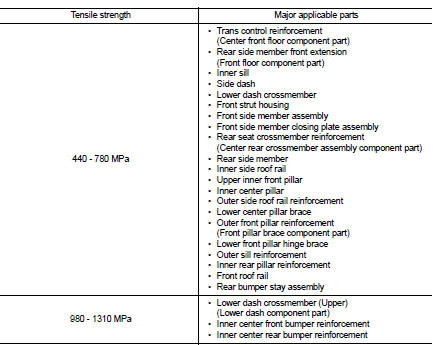

Accordingly, precautions in repairing automotive bodies made of high strength steel are described below:

FOR 2WD MODELS

FOR 4WD MODELS


FOR 4WD MODELS

Read the following precautions when repairing HSS:


Read the following precautions when repairing HSS:

1. Additional points to consider The repair of reinforcements (such as side members) by heating is not recommended, because it may weaken the component.

When heating is unavoidable, never heat HSS parts above 550C (1,022F).

Verify heating temperature with a thermometer.

(Crayon-type and other similar type thermometer are appropriate.)

When straightening body panels, use caution in pulling any


When straightening body panels, use caution in pulling any HSS panel. Because HSS is very strong, pulling may cause deformation in adjacent sections of the body. In this case, increase the number of measuring points, and carefully pull the HSS panel.

 When cutting HSS panels, avoid gas (torch) cutting if possible.


When cutting HSS panels, avoid gas (torch) cutting if possible.

Instead, use a saw to avoid weakening surrounding areas due to heat. If gas (torch) cutting is unavoidable, allow a minimum margin of 50 mm (1.97in).

 When welding HSS panels, use spot welding whenever possible


When welding HSS panels, use spot welding whenever possible in order to minimize weakening surrounding areas due to heat.

If spot welding is impossible, use MIG. welding. Do not use gas (torch) for welding because it is inferior in welding strength.

 Spot welding on HSS panels is harder than that of an ordinary


Spot welding on HSS panels is harder than that of an ordinary steel panel.

Therefore, when cutting spot welds on a HSS panel, use a low speed high torque drill (1,000 to 1,200 rpm) to increase drill bit durability and facilitate the operation.

2. Precautions in spot welding HSS


2. Precautions in spot welding HSS This work should be performed under standard working conditions.

Always note the following when spot welding HSS: The electrode tip diameter must be sized properly according to the metal thickness

 The panel surfaces must fit flush to each other, leaving no


The panel surfaces must fit flush to each other, leaving no gaps.

 Follow the specifications for the proper welding pitch.


Follow the specifications for the proper welding pitch.


Handling of Ultra High Strength Steel Plate Parts


Handling of Ultra High Strength Steel Plate Parts

PROHIBITION OF CUT AND CONNECTION

Never cut and Joint the stiffener front side member (front floor inside frame parts) because its material is high strength steel plate (ultra high strength steel plate).

The front floor assembly must be replaced if this part is damaged.
