Nissan Juke Owners Manual : Passenger compartment

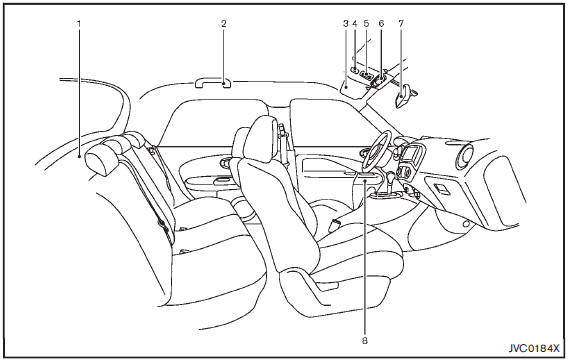

1. Cargo area
— Cargo cover
— Cargo light (, )
2. Coat hook
3. Sun visors
4. Microphone
5. Moonroof switch
6. Room light and map lights
7. Inside rearview mirror
8. Door armrest
— Power window switch
— Power door lock switch
: if so equipped
