Switch Name and Function

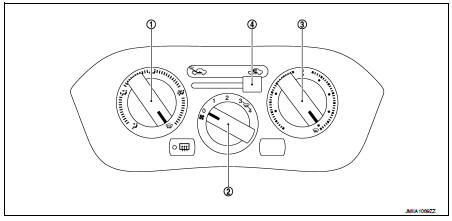

HEATER CONTROLLER (HEATER CONTROL)

1. MODE dial


1. MODE dial
2. Fan control dial
3. Temperature control dial 4. Intake lever
