Nissan Juke Service and Repair Manual : Operation

Switch Name and Function

A/C CONTROLLER (A/C CONTROL)

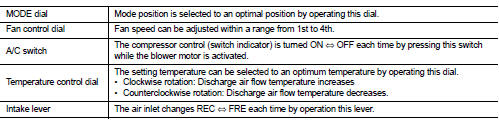

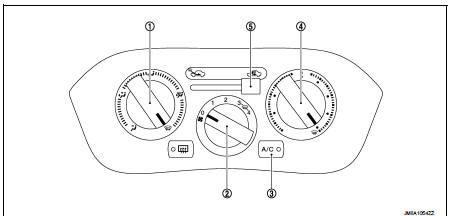

1. MODE dial


1. MODE dial
2. Fan control dial
3. A/C switch
4. Temperature control dial 5. Intake lever
