Nissan Juke Owners Manual : Integrated control system (if so equipped)

The Integrated Control System is located below the audio system or navigation system (if so equipped). Two Integrated Control System modes can be selected: Drive mode and Climate Control mode.

Depending on which Integrated Control System mode selected (Drive mode or Climate Control mode), the screen display and some button functions will change.

Drive mode
In the Drive mode, three types of driving modes can be selected: NORMAL, SPORT and ECO. See Drive mode . In addition, while in the Drive mode, SETUP, Drive information and ECO information can be displayed and adjusted. See Integrated control system .

Climate Control mode
In the Climate Control mode, the climate control can be set and adjusted. See Automatic air conditioner (with Integrated Control System) .

DRIVE MODE


DRIVE MODE

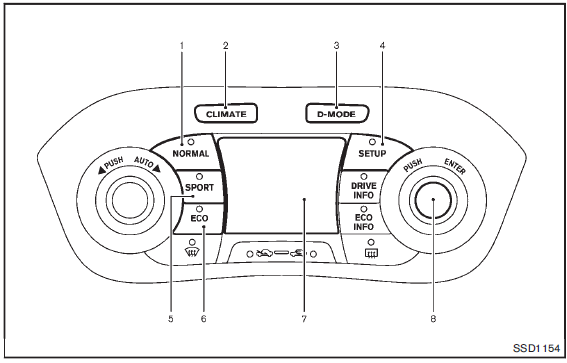

1. NORMAL drive mode button 2. Climate control mode select button 3. Drive mode select button 4. SETUP button
5. SPORT drive mode button 6. ECO drive mode button 7. Display screen
8. Enter button/Selection dial

Example


Example

Three drive modes (NORMAL, SPORT and ECO) can be selected depending on the driving condition. When each mode is selected, the control state of the engine, CVT (if so equipped), steering and climate appears on the display briefly.

Each selected Drive mode (NORMAL, SPORT or ECO) is displayed at the top of the display screen.

NOTE:

   The display values of torque, boost and current fuel economy may differ depending on driving conditions. Use the display values as reference only.

The vehicle will be set to the NORMAL drive mode when restarting the engine.

NORMAL drive mode


NORMAL drive mode

The NORMAL drive mode is recommended for normal driving. To set the NORMAL drive mode, press the Drive mode select button and then press the NORMAL drive mode button. The control state of the engine, CVT (if so equipped) steering and climate is displayed briefly.

When the NORMAL drive mode is selected, a voltage meter and an engine torque meter appear on the display screen.

NOTE:

The voltage meter may change according to the driving condition. This is not a malfunction.

  At start up, the vehicle is automatically set to the NORMAL drive mode.

SPORT drive mode


SPORT drive mode

The SPORT drive mode is recommended for an enhanced performance feel. To set the SPORT drive mode, press the drive mode select button.

The control state of the engine, CVT (if so equipped), steering and climate control is displayed briefly. In the SPORT mode, the engine, CVT (if so equipped) and steering are set to SPORT. Climate control is set to NORMAL.

When the SPORT drive mode is selected, a boost meter appears on the display screen.

NOTE:

In the SPORT mode, fuel economy may be reduced.

ECO drive mode


ECO drive mode

The ECO drive mode is recommended for maximum fuel economy. In the ECO drive mode, the engine and CVT (if so equipped) are adjusted to enhance fuel economy.

To set the ECO drive mode, press the drive mode select button and then press the ECO drive mode button. The control state of the engine, CVT (if so equipped), steering and climate control is displayed briefly.

When the ECO drive mode is selected, the current fuel economy appears on the display screen.

When the climate ECO mode is also switched on, the climate control system is adjusted to further enhance fuel economy.

The climate ECO mode can be switched on or off in the SETUP mode. See Setting the climate ECO mode .

NOTE:

Many driving factors influence fuel economy. Selecting the ECO drive mode may not improve fuel economy.

In the ECO drive mode, performance may be reduced.

Setting the climate ECO mode:


Setting the climate ECO mode:

When the climate ECO mode is switched on, the climate control system operates to enhance fuel economy.

To turn the climate ECO mode on or off

1. Press the drive mode select button to select the drive mode.

2. Press the SETUP button.

3. Turn the selection dial until CLIMATE ECO is selected.

4. Press the ENTER button to switch climate ECO on or off. When the CLIMATE ECO mode is turned on, the CLIMATE ECO indicator A turns red on the display screen.
