Nissan Juke Service and Repair Manual : Ignition timing

Inspection

1.CHECK IGNITION TIMING

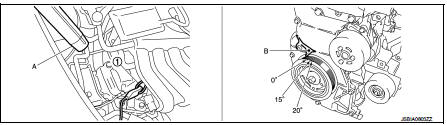

1. Attach timing light to loop wire as shown.

1. Loop wire


1. Loop wire

A. Timing light
B. Timing indicator

2. Check ignition timing.

>> INSPECTION END
