Nissan Juke Service and Repair Manual : Front seat belt

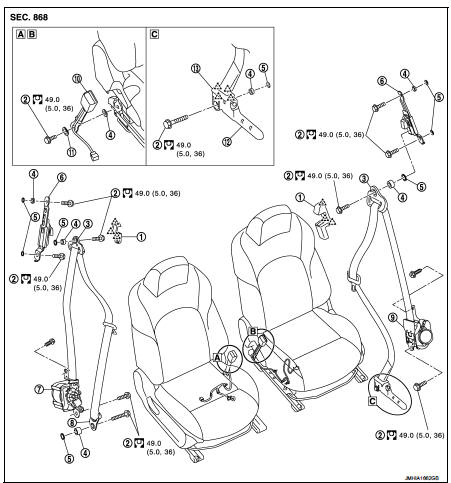

Exploded View

1. Adjuster cover


1. Adjuster cover
2. Anchor bolt
3. Shoulder anchor
4. Spacer
5. Retaining washer
6. Seat belt adjuster
7. Seat belt pre-tensioner retractor (Passenger side)
8. Outer anchor
9. Seat belt pre-tensioner retractor (Driver side)
10. Seat belt buckle
11. Wave washer
 12. Lap pre-tensioner 13. Lap pre-tensioner seat belt garnish

: Nm (kg-m, ft-lb): Pawl
Seat belt retractor : Removal and Installation: Nm (kg-m, ft-lb)


Seat belt retractor : Removal and Installation

REMOVAL

WARNING:
Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or more.

Driver side
1. Remove shoulder anchor.

1. Slide driver seat to the frontmost position.

2. Pull adjuster cover in direction indicated by arrows as shown in the figure. Remove adjuster cover.

: Pawl


3. Remove shoulder anchor mounting anchor bolt.


3. Remove shoulder anchor mounting anchor bolt.

2. Remove lap pre-tensioner.

1. Remove front kicking plate inner and rear kicking plate inner. Refer to INT-19, "KICKING PLATE INNER : Removal and Installation".

2. Remove center pillar lower garnish. Refer to INT-20, "CENTER PILLAR LOWER GARNISH : Removal and Installation".

3. Remove driver seat from the vehicle.

Refer to SE-19, "Removal and Installation".

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

4. Lift up lap pre-tensioner seat belt garnish, disengage pawls, and remove lap pre-tensioner seat belt garnish.

: Pawl


5. Pull up floor carpet and disconnect lap pre-tensioner seat belt harness


5. Pull up floor carpet and disconnect lap pre-tensioner seat belt harness connector.

CAUTION:
For installing/removing lap pre-tensioner connector, insert thin screwdriver wrapped in tape into notch, lift lock and remove connector.

Install connector with lock raised, and push lock into connector.

After installing the connector, check that the lock is pushed securely into it.

6. Remove lap pre-tensioner mounting anchor bolt.


6. Remove lap pre-tensioner mounting anchor bolt.

3. Remove seat belt pre-tensioner retractor.

1. Remove seat belt pre-tensioner retractor mounting anchor bolt and screw.

2. Disconnect seat belt pre-tensioner harness connector.

CAUTION:
For installing/removing seat belt pre-tensioner connector, insert thin screwdriver wrapped in tape into notch, lift lock and remove connector.

Install connector with lock raised, and push lock into connector.

After installing the connector, check that the lock is pushed securely into it.

 Never place pre-tensioner seat belt in an area where the temperature


Never place pre-tensioner seat belt in an area where the temperature reaches 80C or more.

4. Remove seat belt adjuster.

1. Remove center pillar upper garnish. Refer to INT-21, "CENTER PILLAR UPPER GARNISH : Removal and Installation".

2. Remove seat belt adjuster mounting anchor bolts.

Passenger side
1. Remove shoulder anchor.

1. Slide passenger seat to the frontmost position.

2. Pull adjuster cover in direction indicated by arrows as shown in the figure. Remove adjuster cover.

: Pawl


3. Remove shoulder anchor mounting anchor bolt.


3. Remove shoulder anchor mounting anchor bolt.

2. Remove outer anchor mounting anchor bolt, and then remove outer anchor.

3. Remove seat belt pre-tensioner retractor.

1. Remove front kicking plate inner and rear kicking plate inner. Refer to INT-19, "KICKING PLATE INNER : Removal and Installation".

2. Remove center pillar lower garnish. Refer to INT-20, "CENTER PILLAR LOWER GARNISH : Removal and Installation".

3. Disconnect seat belt pre-tensioner harness connector.

CAUTION:
For installing/removing seat belt pre-tensioner connector, insert thin screwdriver wrapped in tape into notch, lift lock and remove connector.

Install connector with lock raised, and push lock into connector.

After installing the connector, check that the lock is pushed securely into it.

4. Remove seat belt pre-tensioner retractor mounting anchor bolt and screw.


4. Remove seat belt pre-tensioner retractor mounting anchor bolt and screw.

CAUTION:
Never place pre-tensioner seat belt in an area where the temperature reaches 80C or more.

4. Remove seat belt adjuster.

1. Remove center pillar upper garnish. Refer to INT-21, "CENTER PILLAR UPPER GARNISH : Removal and Installation".

2. Remove seat belt adjuster mounting anchor bolts.

INSTALLATION

Install in the reverse order of removal.

Seat belt retractor : Inspection

AFTER A COLLISION

WARNING:
Inspect all seat belt assemblies including retractors and attached hardware after any collision

.

NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Failure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use during a collision should also be replaced if either damage or improper operation was noted. Seat belt pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in which the air bags were deployed.

Replace any seat belt assembly (including anchor bolts) if: The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buckles show no damage and continue to operate properly).

The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or distortion and repair if necessary before installing a new seat belt assembly.

Anchor bolts are deformed or worn out.

The seat belt pre-tensioners must be replaced even if the seat belts were not in use during the collision in which the air bags were deployed.

PRELIMINARY CHECKS

1. Check the seat belt warning lamp for proper operation as per the following: a. Turn ignition switch ON. The seat belt warning lamp should illuminate.

b. Fasten driver seat belt. The seat belt warning lamp should turn OFF.

2. If the air bag warning lamp is blinking, perform self-diagnosis with CONSULT-III and air bag warning lamp. Refer to SRC-12, "Description".

3. Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

4. Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Check that guide swivels freely and that webbing lays flat and does not bind in guide. Check that height adjuster operates properly and holds securely.

5. Check retractor operation: a. Fully extend the seat belt webbing and check for twists, tears or other damage.

b. Allow the seat belt to retract. Check that webbing returns smoothly and completely into the retractor. If the seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth. Dirt build-up in the loops of the upper anchors can cause the seat belts to retract slowly.

c. Fasten the seat belt. Check that seat belt returns smoothly and completely to the retractor. If the webbing does not return smoothly, the cause may be an accumulation of dust or dirt. Use the SEAT BELT TAPE

SET and perform the following steps.

Inspect the front seat belt through-anchor 1. Pull the seat belt out to a length of 500 mm (19.69 in) or more.

2. Fix the seat belt at the center pillar webbing opening with a clip or other device.

3. Pass a thin wire through the through-anchor webbing opening. Hold both ends of the wire and pull it tightly while moving it up and down several times along the webbing opening surface to remove dirt stuck there.

4. Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean cloth.

5. Apply tape at the point where the webbing contacts the through-anchor webbing opening.

NOTE

:
Apply the tape so that there is no slack or wrinkling.

6. Remove the clip fixing the seat belt and check that the webbing returns smoothly.

6. Repeat steps above if necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) NOTE

:
All seat belt retractors are Emergency Locking Retractors (ELR) type. In an emergency (sudden stop) the retractor will lock and prevent the webbing from extending any further.

Check the seat belt retractors with the following test(s) to determine if a retractor assembly is operating normally.

ELR Function Stationary Check Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from extending further.

ELR Function Moving Check WARNING:
Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a large, empty parking lot). Road surface must be paved and dry. Never perform the following test on wet or gravel roads or on public streets and highways. This could result in an accident and serious personal injury. The driver and passenger must be prepared to brace themselves in the event that the retractor does not lock.

1. Fasten driver seat belt. Buckle a passenger into the seat for the belt that is to be tested.

2. Proceed to the designated safe area.

3. Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop and the driver and passenger must be prepared to brace themselves in the event that the retractor does not lock. Apply brakes firmly and make a very hard stop.

During stopping, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock, perform the retractor off-vehicle check.

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1. Remove the front seat belt retractor. Refer to SB-5, "SEAT BELT RETRACTOR : Removal and Installation".

2. Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without twisting the retractor assembly as shown in the figure.

The webbing can be pulled out when the angle (A) is 12 degrees or less.

The webbing cannot be pulled out when the angle (B) is 13 degrees or more.

A and B : Tilting angles : Vehicle front


3. Replace the seat belt assembly if it does not operate normally.


3. Replace the seat belt assembly if it does not operate normally.

Seat belt buckle : Removal and Installation

REMOVAL

WARNING

:
Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or more.

1. Remove front seat from the vehicle.

Refer to SE-19, "Removal and Installation".

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

2. Disconnect occupant detection unit harness connector. (Passenger seat only) 3. Remove harness fixing clamps of seat belt buckle and connector fixing clip that are installed on seat.

4. Remove seat belt buckle mounting anchor bolt, and then remove seat belt buckle from seat.

INSTALLATION

Install in the reverse order of removal.

Seat belt buckle : Inspection

AFTER A COLLISION

WARNING:
Inspect all seat belt assemblies including retractors and attached hardware after any collision

.

NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Failure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use during a collision should also be replaced if either damage or improper operation was noted. Seat belt pre-tensioners should be replaced even if the seat belts were not in use during a frontal collision in which the air bags were deployed.

Replace any seat belt assembly (including anchor bolts) if: The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buckles show no damage and continue to operate properly).

The seat belt is damaged in an accident (i.e. torn webbing, bent retractor or guide, etc.).

The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or distortion and repair if necessary before installing a new seat belt assembly.

Anchor bolts are deformed or worn out.

The seat belt pre-tensioner must be replaced even if the seat belts were not in use during the collision in which the air bags were deployed.

PRELIMINARY CHECKS

1. Check the seat belt warning lamp for proper operation as pen the following: a. Turn ignition switch ON. The seat belt warning lamp should illuminate.

b. Fasten driver seat belt. The seat belt warning lamp should turn OFF.

2. If the air bag warning lamp is blinking, perform self-diagnosis using CONSULT-III and air bag warning lamp. Refer to SRC-12, "Description".

3. Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

4. Repeat steps above if necessary to check the other seat belts.
