Nissan Juke Service and Repair Manual : Floor side fairing

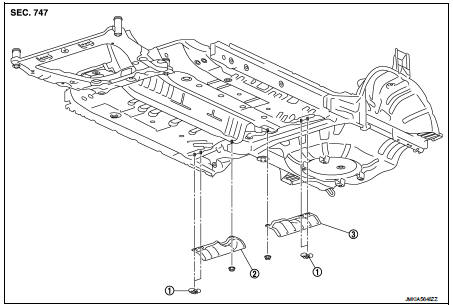

Exploded View

1. Push spring nut


1. Push spring nut
2. Floor under cover RH 3. Floor under cover LH

Removal and Installation

REMOVAL

FLOOR UNDER COVER

Remove floor under cover mounting nut and push spring nuts, and then remove floor under cover.

INSTALLATION

Install in the reverse order of removal.

    Sill cover
    Exploded View 1. Screw grommet 2. Screw grommet 3. Sill cover 4. Wind defle Removal and Installation REMOVAL 1. Remove sill cover front end fixing screw (A). 2. Remove sill cover rear en ...

    Fillet molding
    Exploded View 1. Grommet 2. Clip 3. Clip 4. Front fillet molding 5. Rear fillet molding : Pawl : Do not reuse Front fillet molding FRONT FILLET MOLDING : Removal and Installation REMOVA ...
