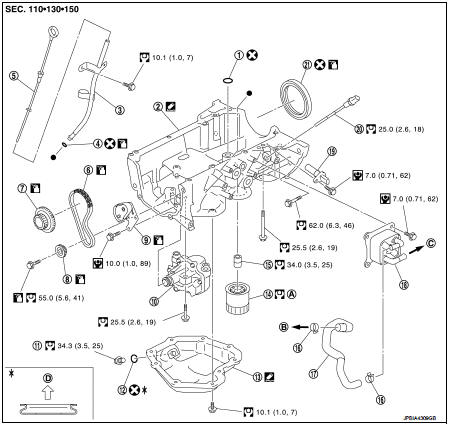

Nissan Juke Service and Repair Manual : Exploded View

1. O-ring

1. O-ring
2. Oil pan (upper)
3. Oil level gauge guide 4. O-ring
5. Oil level gauge
6. Oil pump drive chain
7. Crankshaft sprocket
8. Oil pump sprocket
9. Oil pump chain tensioner 10. Oil pump
11. Drain plug
12. Drain plug washer
13. Oil pan (lower)
14. Oil filter
15. Connector bolt
16. Clamp
17. Oil cooler hose
18. Oil cooler
19. Crankshaft position sensor 20. Oil level sensor
21. Rear oil seal

A. Refer to LU-11
B. To thermostat housing C.To thermostat housing (M/T models) To CVT fluid cooler (CVT models) D. Oil pan side

: Nm (kg-m, in-lb): Nm (kg-m, ft-lb)
: Always replace after every: Nm (kg-m, in-lb)
disassembly.: Always replace after every

: Sealing point: Should be lubricated with oil.

Removal and Installation: Sealing point

    Removal and Installation
    REMOVAL 1. Remove engine assembly. Refer to EM-55, "2WD : Exploded View" (2WD) , EM-59, "4WD : Exploded View" (4WD). 2. Remove oil pan (lower). Refer to EM-41, "Removal a ...
