Nissan Juke Service and Repair Manual : Exploded View

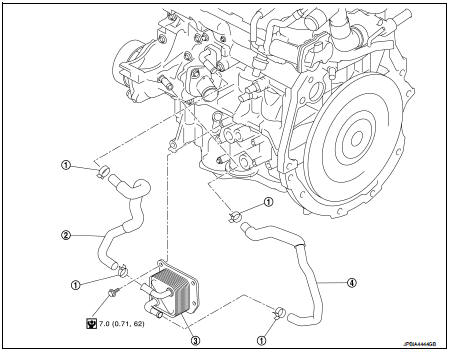

M/T models

1. Clamp


1. Clamp
2. Water hose
3. Oil cooler
4. Water hose

CVT models Nm (kg-m, in-lb)

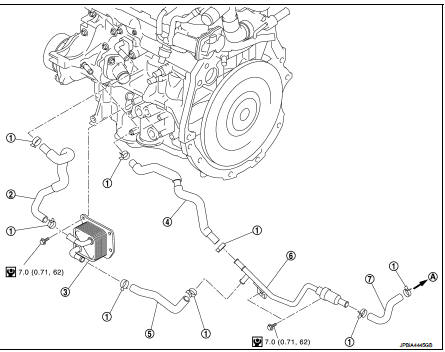

CVT models

1. Clamp


1. Clamp
2. Water hose
3. Oil cooler
4. Water hose
5. Water hose
6. Heater thermostat
7. Water hose

A. To CVT oil warmer

Removal and Installation: Nm (kg-m, in-lb)


    Removal and installation
    OIL COOLER ...

    Removal and Installation
    REMOVAL 1. Drain engine coolant. Refer to CO-11, "Draining". CAUTION: Perform when engine is cold. 2. Remove front bumper facia. Refer to EXT-12, "Exploded View". 3. Remove ...
