Nissan Juke Service and Repair Manual : Exploded View

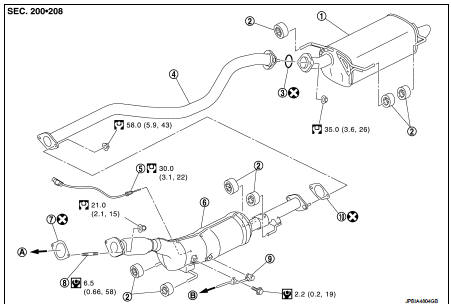

1. Main muffler


1. Main muffler
2. Mounting rubber
3. Ring gasket
4. Center tube
5. Exhaust gas temperature sensor 2 6. Diesel particulate filter assembly 7. Gasket
8. Stud bolt
9. Diesel particulate filter inlet tube 10. Gasket

A. To exhaust manifold B. To pressure hose

: Always replace after every: Nm (kg-m, ft-lb)
disassembly.: Always replace after every
disassembly.

    Removal and installation
    Exhaust system ...

    Removal and Installation
    CAUTION: Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat resistance, corrosion resistance and shape. Perform the operation with the exhaust sy ...
