Nissan Juke Service and Repair Manual : Engine Lubrication System Schematic

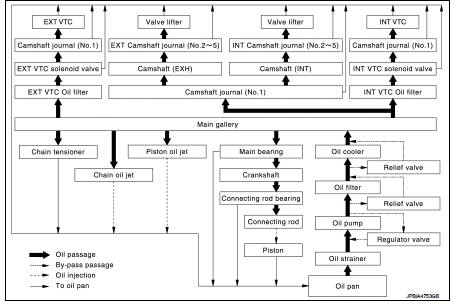

WITH OIL COOLER

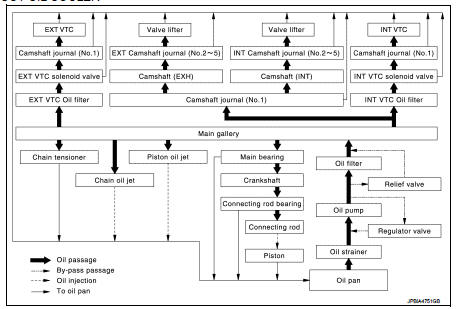

WITHOUT OIL COOLER
Engine Lubrication System
WITH OIL COOLER
WITHOUT OIL COOLER
...
