Nissan Juke Owners Manual : Engine compartment check locations

MR16DDT ENGINE


MR16DDT ENGINE

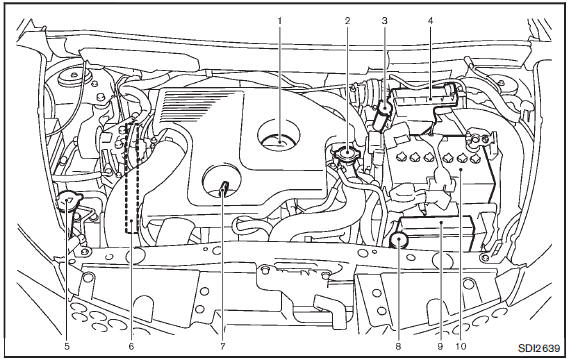

1. Engine oil filler cap 2. Radiator filler cap
3. Brake and clutch fluid reservoir 4. Air cleaner
5. Window washer fluid reservoir 6. Engine drive belt location 7. Engine oil dipstick
8. Engine coolant reservoir 9. Fuse/fusible link holder 10. Battery

: for Manual Transmission (MT) models

    Maintenance precautions
    When performing any inspection or maintenance work on your vehicle, always take care to prevent serious accidental injury to yourself or damage to the vehicle. The following are general precaution ...

    Engine cooling system
    The engine cooling system is filled at the factory with a pre-diluted mixture of 50% Genuine NISSAN Long Life Antifreeze/Coolant (blue) and 50% water to provide year-round anti-freeze and coolant ...
