Nissan Juke Owners Manual : Engine compartment

MR16DDT ENGINE


MR16DDT ENGINE

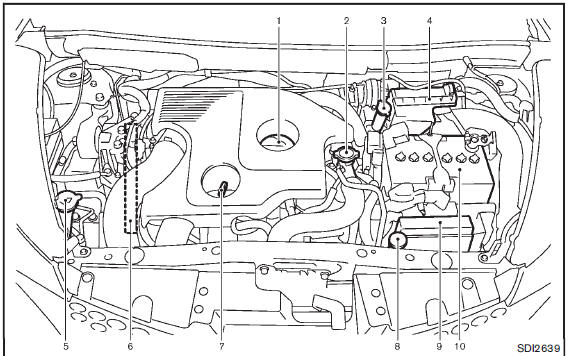

1. Engine oil filler cap 2. Radiator filler cap
— Vehicle overheat
3. Brake and clutch fluid reservoir 4. Air cleaner
5. Window washer fluid reservoir 6. Engine drive belt location 7. Engine oil dipstick
8. Engine coolant reservoir 9. Fuse/fusible link holder 10. Battery
— Jump starting

: for Manual Transmission (MT) models
