Common item

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

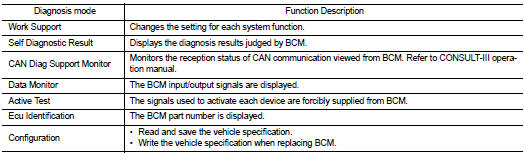

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION


SYSTEM APPLICATION

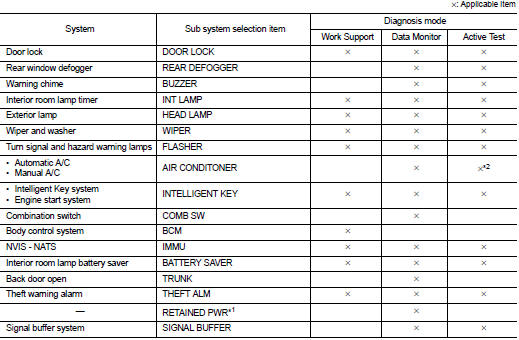

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

NOTE:


NOTE

:
• *1: This item is displayed, but not used.

• *2: For models with automatic A/C, this diagnosis mode is not used.

FREEZE FRAME DATA (FFD)

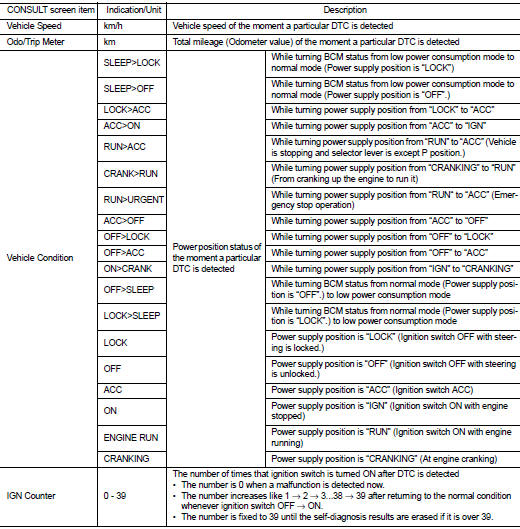

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT-III.

Wiper


Wiper

WIPER : CONSULT-III Function - WIPER

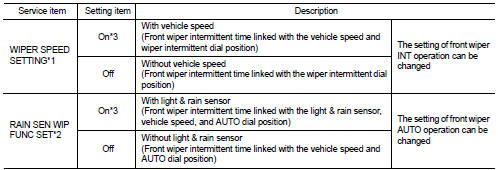

WORK SUPPORT

*1: The item is indicated, but not operated on model with rain sensor


*1: The item is indicated, but not operated on model with rain sensor *2: The item is indicated, but not operated on model without rain sensor *3: Factory setting

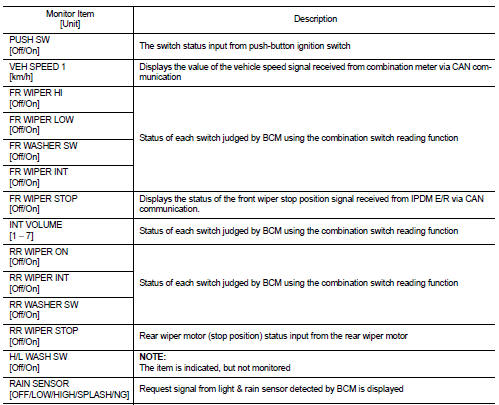

DATA MONITOR

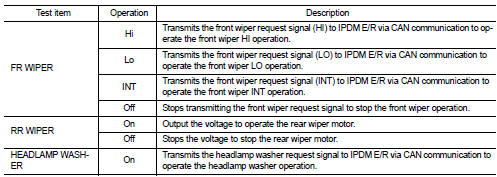

ACTIVE TEST


ACTIVE TEST

Diagnosis system (bcm) (without intelligent key system)


    System
    Front wiper and washer system (with light & rain sensor) FRONT WIPER AND WASHER SYSTEM (WITH LIGHT & RAIN SENSOR) : System Diagram FRONT WIPER AND WASHER SYSTEM (WITH LIGHT & RAIN SEN ...

    Diagnosis system (bcm) (without intelligent key system)
    Common item COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT-III performs the following functions via CAN communication with BCM. SYSTEM APPLICATION BCM can perfo ...
