Nissan Juke Service and Repair Manual : Diagnosis system (BCM)

Common item

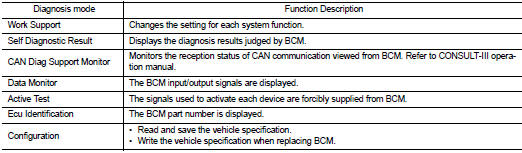

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

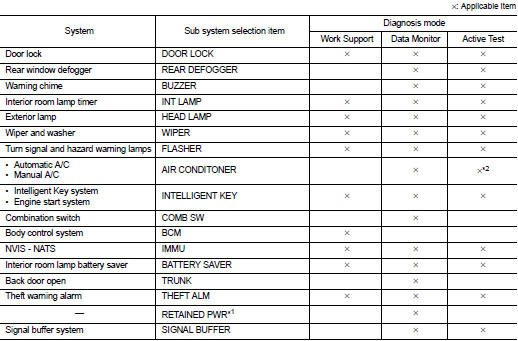

SYSTEM APPLICATION


SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE

:
It can perform the diagnosis modes except the following for all sub system selection items.

NOTE:


NOTE

:
Х *1: This item is displayed, but not used.

Х *2: For models with automatic A/C, this diagnosis mode is not used.

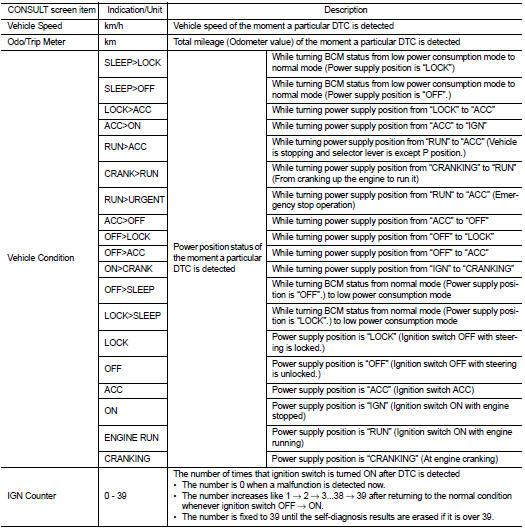

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on CONSULT-III.

Door lock


Door lock

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK) (With Super Lock

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

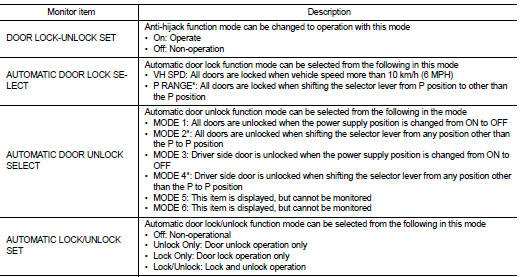

WORK SUPPORT

*: P range interlock door lock can be selected for M/T models, but automatic


*: P range interlock door lock can be selected for M/T models, but automatic door lock/unlock function does not operate.

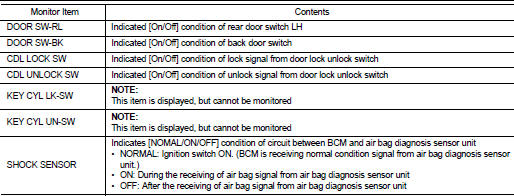

DATA MONITOR

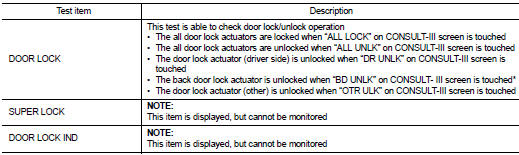

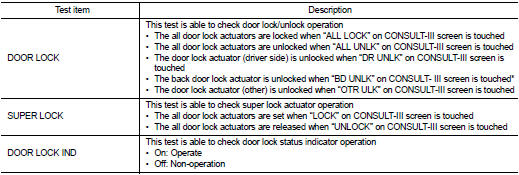

ACTIVE TEST


ACTIVE TEST

*: BD UNLK function does not operate.


*: BD UNLK function does not operate.

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK) (Without Super Lock)

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

WORK SUPPORT

*: P range interlock door lock can be selected for M/T models, but automatic


*: P range interlock door lock can be selected for M/T models, but automatic door lock/unlock function does not operate.

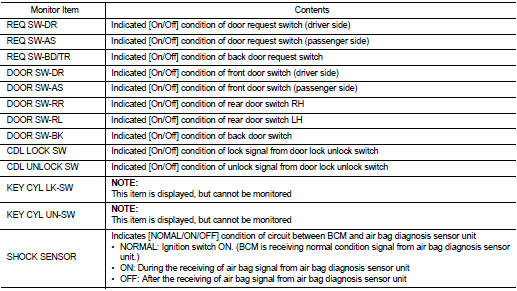

DATA MONITOR


ACTIVE TEST


ACTIVE TEST

*: BD UNLK function does not operate.


*: BD UNLK function does not operate.

Rear window defogger

REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER)

Data monitor

ACTIVE TEST


ACTIVE TEST

Buzzer


Buzzer

BUZZER : CONSULT-III Function (BCM - BUZZER)

CONSULT-III APPLICATION ITEMS

DATA MONITOR


DATA MONITOR

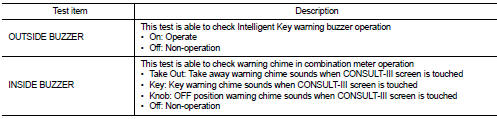

ACTIVE TEST


ACTIVE TEST

INT lamp


INT lamp

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

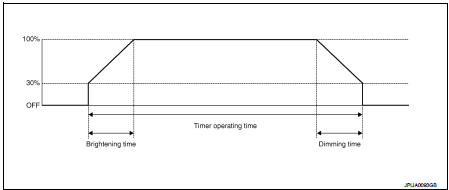

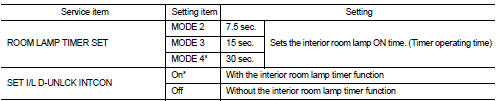

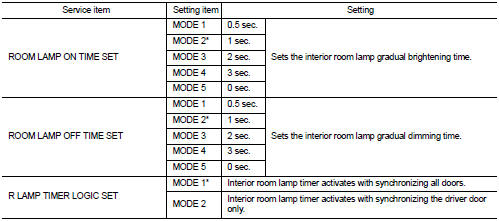

WORK SUPPORT



*: Factory setting


*: Factory setting

DATA MONITOR


ACTIVE TEST


ACTIVE TEST

Headlamp


Headlamp

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

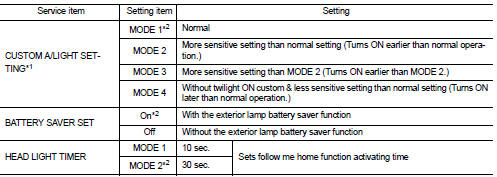

WORK SUPPORT

*1: For models is without auto light system, this item is displayed but work


*1: For models is without auto light system, this item is displayed but work support is not operated.

*2: Factory setting

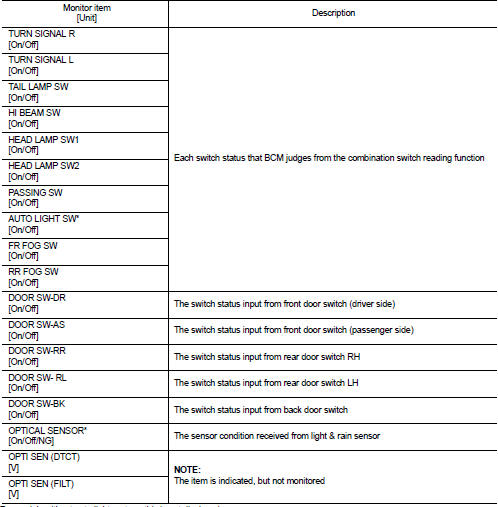

DATA MONITOR


*: For models without auto light system, this is not displayed.


*: For models without auto light system, this is not displayed.

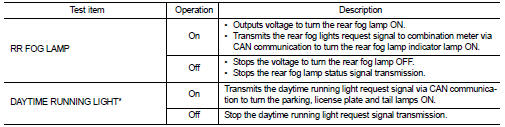

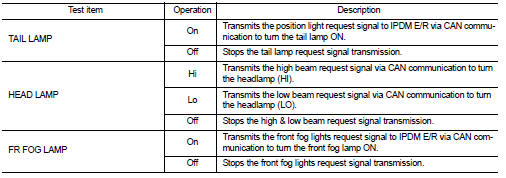

ACTIVE TEST


*: For models without daytime running light system, this item is not


*: For models without daytime running light system, this item is not displayed.

Wiper

WIPER : CONSULT-III Function - WIPER

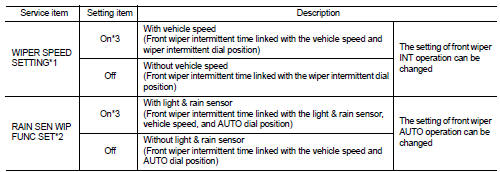

WORK SUPPORT

*1: The item is indicated, but not operated on model with rain sensor


*1: The item is indicated, but not operated on model with rain sensor *2: The item is indicated, but not operated on model without rain sensor *3: Factory setting

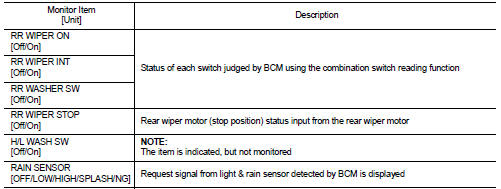

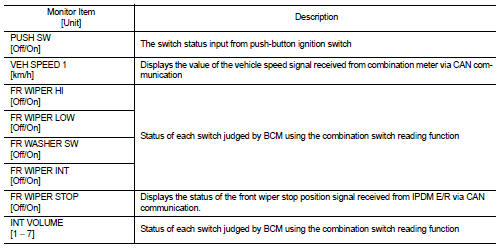

DATA MONITOR

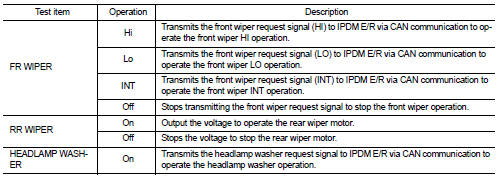

ACTIVE TEST


ACTIVE TEST

Flasher


Flasher

FLASHER : CONSULT-III Function (BCM - FLASHER)

WORK SUPPORT

*: Factory setting


*: Factory setting

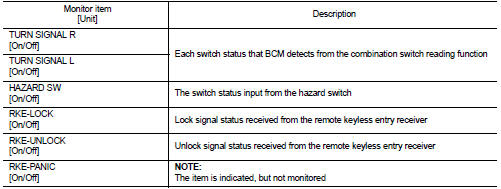

DATA MONITOR


ACTIVE TEST


ACTIVE TEST

Air conditioner


Air conditioner

AIR CONDITIONER : CONSULT-III Function (BCM - AIR CONDITIONER) (Automatic A/C 4WD Models)

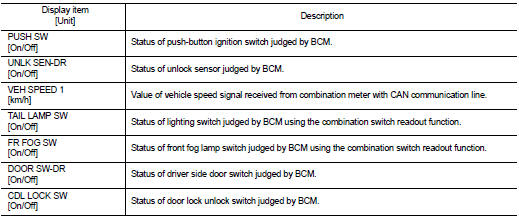

DATA MONITOR

Display Item List

AIR CONDITIONER : CONSULT-III Function (BCM - AIR CONDITIONER) (Automatic


AIR CONDITIONER : CONSULT-III Function (BCM - AIR CONDITIONER) (Automatic A/C 2WD Models)

DATA MONITOR

Display Item List

AIR CONDITIONER : CONSULT-III Function (BCM - AIR CONDITIONER) (Manual A/


AIR CONDITIONER : CONSULT-III Function (BCM - AIR CONDITIONER) (Manual A/ C 4WD Models)

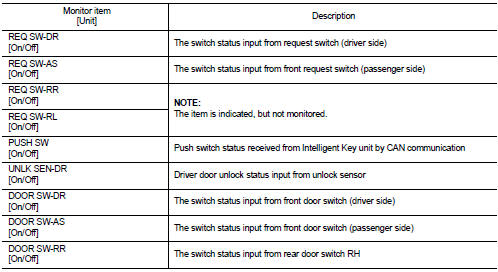

DATA MONITOR

Display item list


ACTIVE TEST


ACTIVE TEST

AIR CONDITIONER : CONSULT-III Function (BCM - AIR CONDITIONER) (Manual A/


AIR CONDITIONER : CONSULT-III Function (BCM - AIR CONDITIONER) (Manual A/ C 2WD Models)

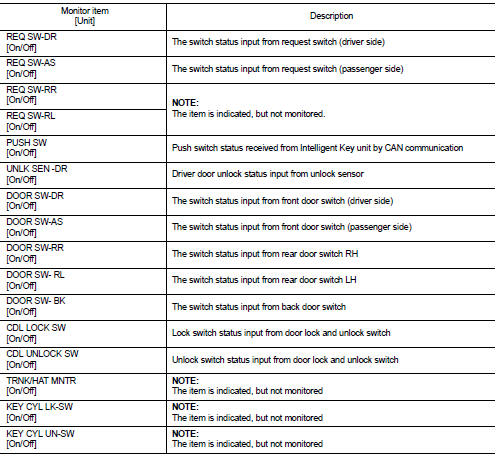

DATA MONITOR

Display item list

ACTIVE TEST


ACTIVE TEST

Intelligent key


Intelligent key

INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY) (With Super Lock)

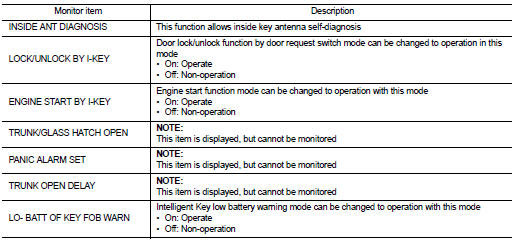

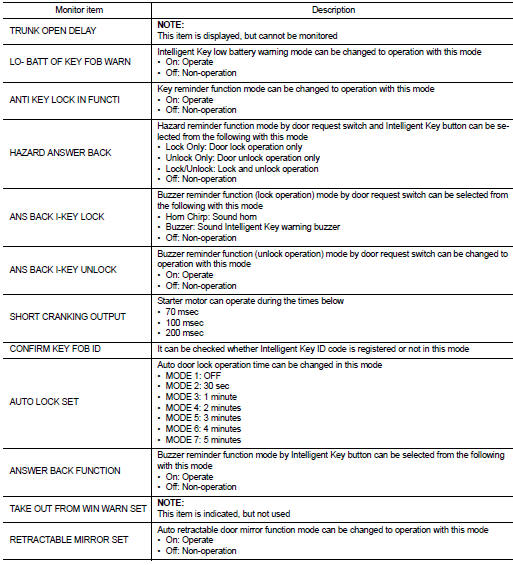

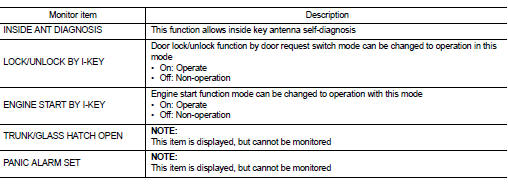

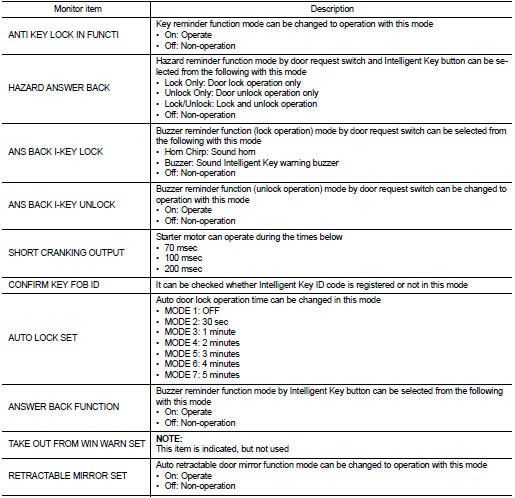

WORK SUPPORT


SELF-DIAG RESULT


SELF-DIAG RESULT

Refer to BCS-67, "DTC Index".

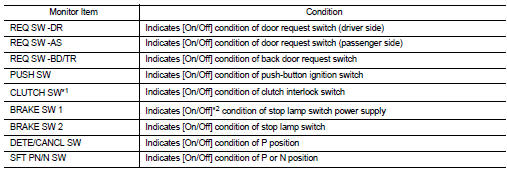

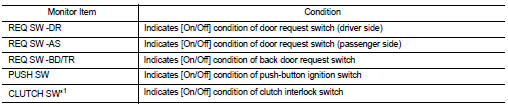

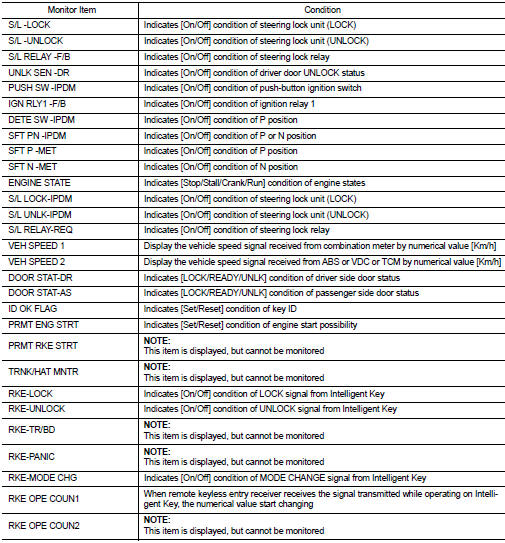

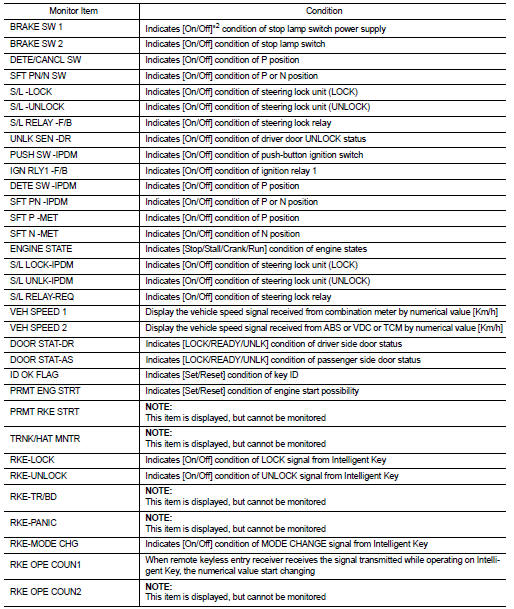

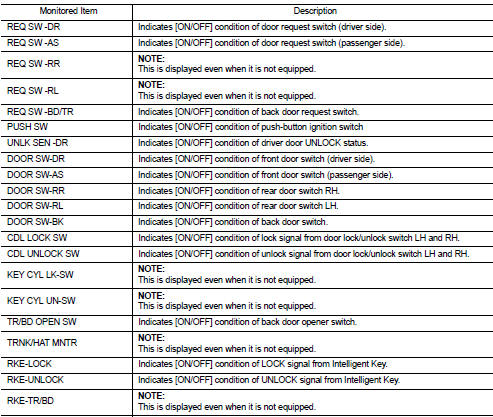

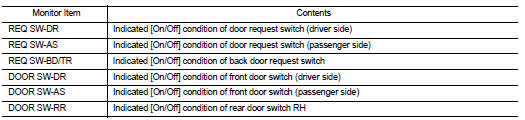

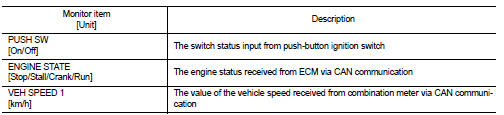

DATA MONITOR


*1: It is displayed but does not operate on CVT models.


*1: It is displayed but does not operate on CVT models. *2: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

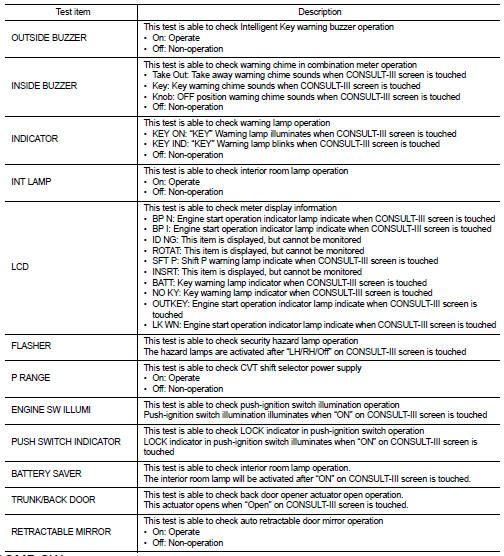

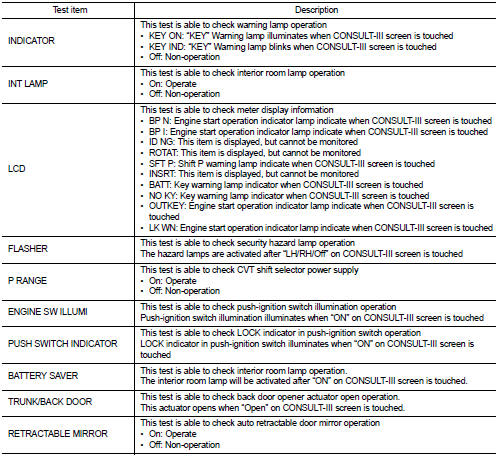

ACTIVE TEST


INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY) (Without


INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY) (Without Super Lock)

WORK SUPP


SELF-DIAG RESULT


SELF-DIAG RESULT

Refer to BCS-67, "DTC Index".

DATA MONITOR


*1: It is displayed but does not operate on CVT models.


*1: It is displayed but does not operate on CVT models.

*2: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

Comb SW


Comb SW

COMB SW : CONSULT-III Function (BCM - COMB SW)

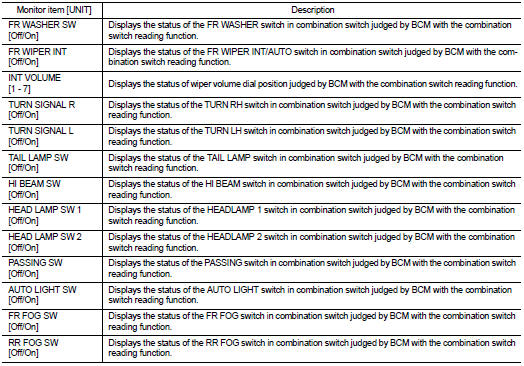

DATA MONITOR


BCM


BCM

BCM : CONSULT-III Function (BCM - BCM)

WORK SUPPORT

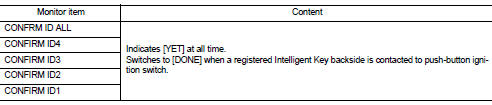

IMMU


IMMU

IMMU : CONSULT-III Function (BCM - IMMU)

WORK SUPPORT

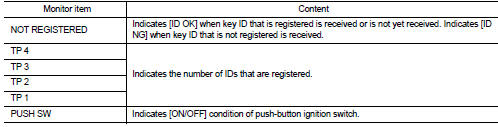

DATA MONITOR


DATA MONITOR


ACTIVE TEST


ACTIVE TEST

Battery saver


Battery saver

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

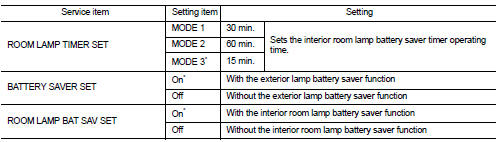

WORK SUPPORT

*:Factory setting


*:Factory setting

DATA MONITOR


ACTIVE TEST


ACTIVE TEST

*: Each lamp switch is in ON position.


*: Each lamp switch is in ON position.

Trunk

TRUNK : CONSULT-III Function (BCM - TRUNK) (With Super Lock)

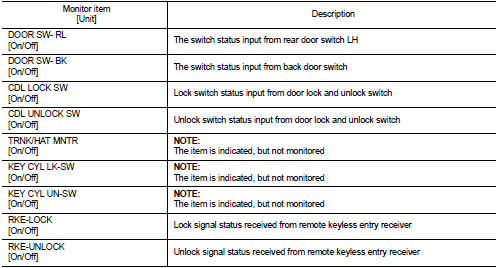

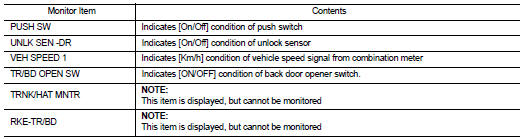

DATA MONITOR

TRUNK : CONSULT-III Function (BCM - TRUNK) (Without Super Lock)


TRUNK : CONSULT-III Function (BCM - TRUNK) (Without Super Lock)

DATA MONITOR


Theft ALM


Theft ALM

THEFT ALM : CONSULT-III Function (BCM - THEFT)

WORK SUPPORT

DATA MONITOR


DATA MONITOR

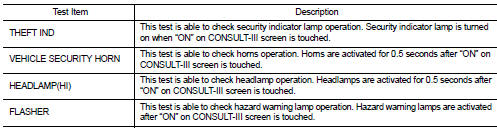

ACTIVE TEST


ACTIVE TEST

Signal buffer


Signal buffer

SIGNAL BUFFER : CONSULT-III Function (BCM - SIGNAL BUFFER)

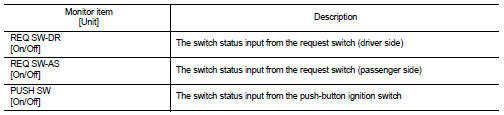

DATA MONITOR

ACTIVE TEST


ACTIVE TEST
