Nissan Juke Service and Repair Manual : Component parts

Body control system

BODY CONTROL SYSTEM : Component Parts Locatio

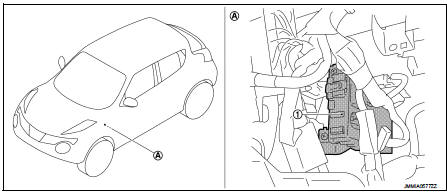

RHD MODELS

1. BCM


1. BCM

A. Behind of glove box (Left side)

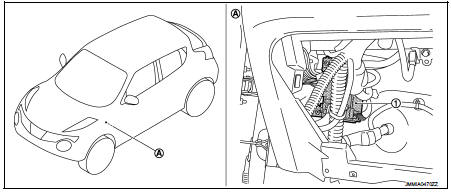

LHD MODELS

1. BCM


1. BCM

A. Behind of instrument lower panel LH (Left side)

Power consumption control system

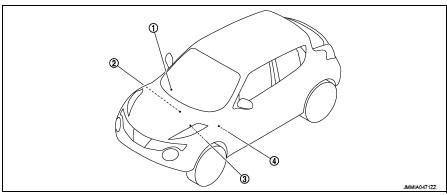

POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location

1. Combination meter


1. Combination meter 2. Multi display unit Refer to AV-96, "Component Parts Location".

3. IPDM E/R Refer to PCS-5, "Component Parts Location".

4. BCM Refer to BCS-96, "BODY CONTROL SYSTEM : Component Parts Location".
