Nissan Juke Service and Repair Manual : Component parts

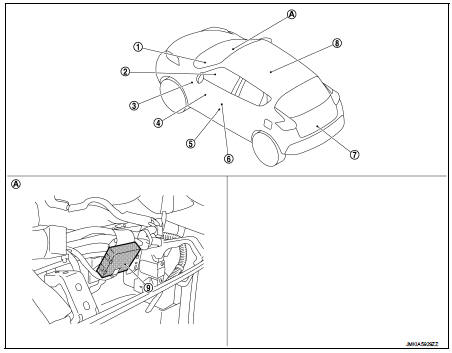

Component Parts Location

1. Combination meter


1. Combination meter 2. Key switch
3. BCM Refer to BCS-96, "BODY CONTROL SYSTEM : Component Parts Location" 4. Power window main switch (door lock/unlock switch) 5. Front door switch (driver side) 6. Front door lock assembly (driver side)
7. Back door lock assembly 8. Air bag diagnosis sensor unit Refer to SRC-7, "Component Parts Location"
9. Remote keyless entry receiver

A. View with the glove box assembly removed

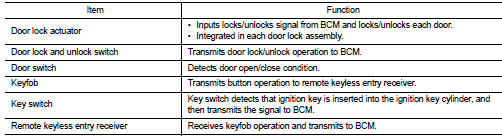

Component Description


Power door lock system


    Power door lock system
    System Diagram System Description DOOR LOCK FUNCTION The door lock and unlock switch (driver side) is build into power window main switch. Interlocked with the locking operation of door lo ...
