Nissan Juke Service and Repair Manual : Component parts

Heated seat system : Component Parts Location

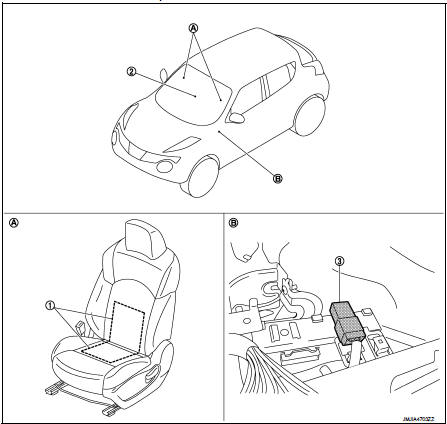

1. Seat heater


1. Seat heater
2. Heated seat switch
3. Heated seat relay

A. Front seat
B. Front LH of passenger room

Heated seat system : Component Description

System


    System
    HEATED SEAT SYSTEM : System Description Heated seat is a system that operates when ignition switch is in ON position. HEATER OPERATION Х When the heated seat switch is ON, seat cushion heater and ...
