Nissan Juke Service and Repair Manual : Component parts

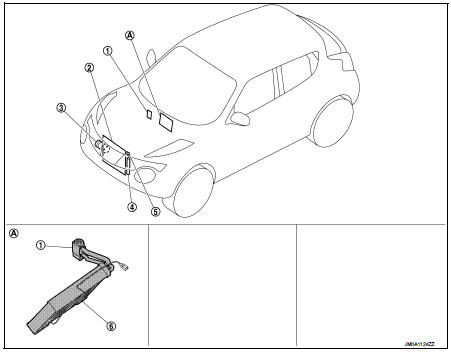

Component Parts Location

1. Expansion valve


1. Expansion valve
2. Condenser
3. Compressor
4. Liquid tank
5. Refrigerant pressure sensor 6. Evaporator

A. Built-in heater & cooling unit assembly

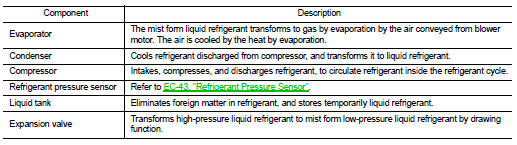

Component Description

System


    System
    System Diagram System Description REFRIGERANT CYCLE Refrigerant Flow The refrigerant from the compressor, flows the condenser with liquid tank, the evaporator, and returns to the compressor. ...
