Nissan Juke Service and Repair Manual : B2626 OUTSIDE ANTENNA

DTC Logic

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE


DTC CONFIRMATION PROCEDURE

1.PERFORM DTC CONFIRMATION PROCEDURE

1. Disconnect outside key antenna (driver side) connector.

2. Perform INTELLIGENT KEY Self Diagnostic Result.

Is outside key antenna DTC detected? YES >> Refer to DLK-236, "Diagnosis Procedure".

NO >> Outside key antenna (driver side) is OK.

Diagnosis Procedure

1.CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch OFF.

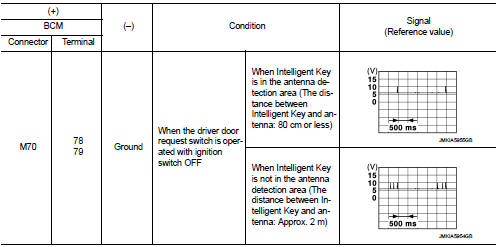

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? YES >> Replace BCM. Refer to BCS-93, "Removal and Installation".

NO >> GO TO 2.

2.CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Disconnect BCM connector and outside key antenna (driver side) connector.

2. Check continuity between BCM harness connector and outside key antenna (driver side) harness connector.

3. Check continuity between BCM harness connector and ground.


3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?


Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (driver side). (New antenna or other antenna)
2. Connect BCM connector and outside key antenna (driver side) connector.

3. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?


Is the inspection result normal? YES >> Replace outside key antenna (driver side).

NO >> Replace BCM. Refer to BCS-93, "Removal and Installation".
