Nissan Juke Service and Repair Manual : Automatic air conditioner system

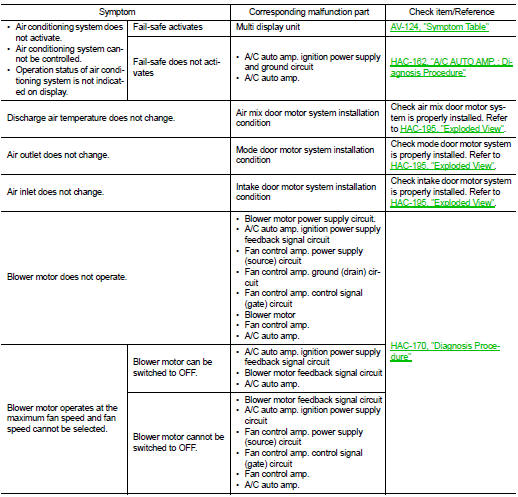

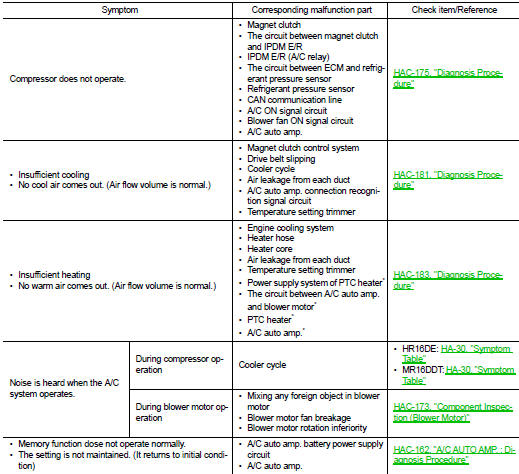

Symptom Table

NOTE

:
Perform self-diagnoses with CONSULT-III before performing the symptom diagnosis. If any DTC is detected, perform the corresponding diagnosis.


*: With K9K engine models


*: With K9K engine models

    Insufficient cooling
    Description Symptom Х Insufficient cooling Х No cool air comes out. (Air flow volume is normal.) Diagnosis Procedure NOTE: Perform self-diagnoses with CONSULT-III before performing symptom diagn ...
